Andrew “bunnie” Huang has launched extra particulars of the automated IRIS inspection system, designed to make use of brilliant infrared lighting to carry out in-situ die {photograph} of unencapsulated silicon chips as a method of detecting hardware-level Trojans inserted through the fabrication course of — showcasing a spotlight stage with “nanometer decision.”
“The depth of subject of the 10x goal used on IRIS is estimated to be round 8.5 microns,” Huang explains. “Which means I want to have the ability to management the gap of the chip to the lens in steps a lot finer than 8.5 microns. Be aware that depth of subject usually decreases with rising magnification, so if we need to assist even greater magnifications, we would want even smaller focus steps.”

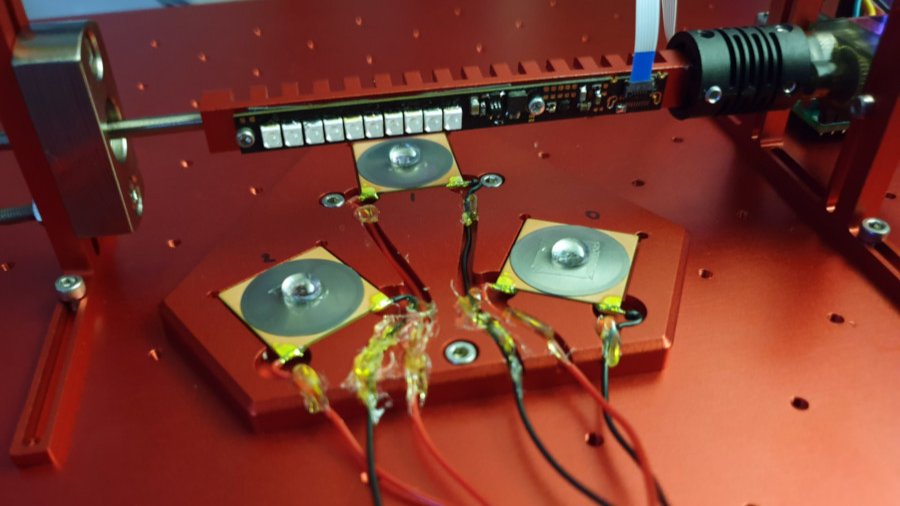

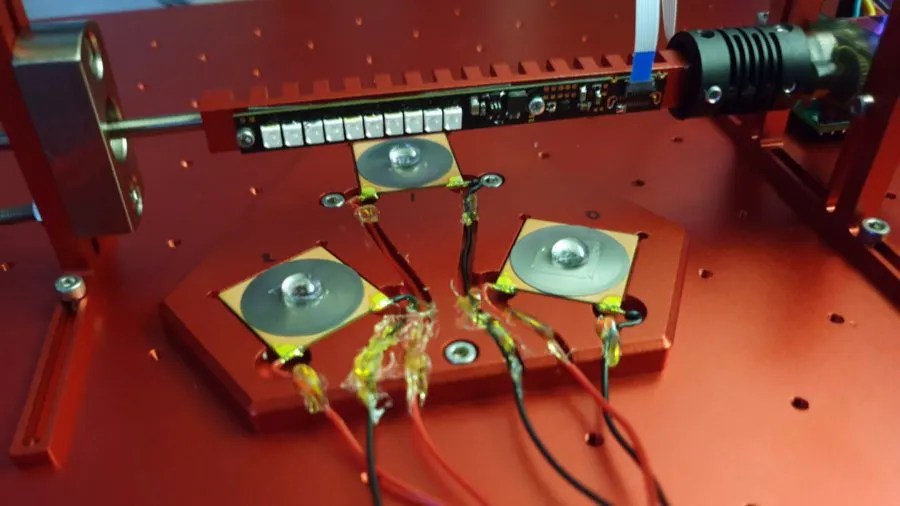

The automated IRIS silicon inspection system wants micron-level focusing capabilities — which is what this stage delivers. (📷: Andrew “bunnie” Huang)
IRIS, revealed in March final yr, is Huang’s strategy to non-destructive imaging of bodily silicon chips. When mounted unencapsulated with the again aspect of the silicon uncovered, as many chips are, it is doable to shine a brilliant infrared gentle by means of the silicon and seize images of the {hardware} inside with a lightly-modified inspection digicam — giving rise to IRIS, the Infrared In-Situ inspection system.
Initially, IRIS was a handbook affair — however earlier this yr Huang confirmed off an automatic model, able to capturing a number of photos that may be mixed right into a single high-resolution shot. To take action, nevertheless, requires high-quality focus — and the movement platform used for the construct, Jubilee3D, solely delivers a 10-micron decision on the Z axis. The answer: a piezoelectric positioner.
“Sadly, piezoelectric actuators are costly. They begin round $1000, and go up from there should you want options like kinematic coupling,” Huang laments. “So, I made a decision I’d attempt to construct one from scratch, as a result of it appeared just like the uncommon case the place fixing an fascinating drawback with a one-off resolution can also be cheaper than shopping for an off-the-shelf unit.”
Utilizing the low-cost TDK PowerHap haptic actuator as a base, out there for $20 a unit, Huang was capable of design a aluminum plate that may be adjusted to differ the gap of the chip from the digicam beneath the management of a Raspberry Pi RP2040 in steps measured in “tens of nanometers” — nicely inside the eight-micron window required. By designing across the idea of “kinematic coupling,” which reduces the variety of contact factors, it is also doable to take away and substitute the higher a part of the main target stage with out hassle.
“The neat half is that on the finish of the day, the entire thing price just a few hundred bucks, even counting the entire prices for one-off customized machining of components and constructing circuit boards (it helps that I hand-soldered the entire thing myself),” Huang notes. “I’m unsure how this compares in efficiency to the thousand-dollar plus business alternate options, however it labored nicely sufficient and the software program is tailor-made to precisely what I wanted.”
Huang has instructed that the main target stage won’t be provided as a product, however has included the design within the IRIS {hardware} repository beneath the Strongly Reciprocal variant of the CERN Open {Hardware} License Model 2. Extra data is accessible on Huang’s weblog.
