What precisely is odometry, why was it developed, and what are its present and potential functions?
From 2009 to 2018 SparkFun hosted the Autonomous Car Competitors (AVC) the place robotics fans got here to our headquarters and tried to finish a course stuffed with turns and obstacles. With correct navigation being essential for this competitors, many strategies of navigation have been used to finish the course. Some utilized GPS, others programmed when to show primarily based on wheel rotations, and a few even used a mix of distance sensors for impediment avoidance to finish the course.
Trying again, I can’t assist however suppose that if SparkFun’s Optical Monitoring Odometry Sensor existed throughout our AVC years then that it could have been a giant benefit for many who selected to make use of it of their robotic. With odometry being a more moderen expertise to deliver to our catalog of sensors I needed to higher perceive what precisely odometry is, why it was developed, and what its present and potential functions are.
What’s Odometry, Anyway?
Consider odometry because the GPS for robots and autonomous automobiles, however with out counting on satellites. It is all about utilizing information from movement sensors to determine how far one thing has traveled. By monitoring these actions, odometry helps in calculating the relative place of the car, which is for navigation and mapping.
Pop quiz!
How have you ever been utilizing odometry for years with out most likely realizing it?
Your laptop mouse! A pc mouse measures its motion throughout a floor and interprets that into cursor motion on a display screen. The older mechanical mice had a ball inside that rolled because the mouse moved throughout a floor. This rolling movement was detected by sensors, which then calculated the space and route the mouse had traveled. That is much like how odometry works by monitoring the rotation of wheels to find out motion.
Should you’re something like me you’ll keep in mind making the transfer from mechanical to optical mice. What a gamechanger! Optical mice use a lightweight sensor to detect motion. The sensor takes 1000’s of pictures per second of the floor beneath the mouse and compares them to detect how far and through which route the mouse has moved. That is akin to how optical odometry sensors work, utilizing visible information to trace motion.
Odometry Strategies
Wheel encoders
Wheel encoders are a tried and true methodology the place you may measure how a lot every wheel turns, and use this info to determine the robotic’s place. Sounds fairly easy. Nevertheless, what if the wheel slips? Your measurements could be thrown off by how far the wheel spins, and never how far the robotic strikes. With the belief that your wheel by no means slips, you may derive your place from as little as two encoders.
Utilizing IMUs
IMUs monitor motion utilizing accelerometers and gyroscopes, detecting modifications in velocity and orientation. The extent of sophistication, accuracy, dimension and affordability of IMUs has come a great distance in the previous few a long time. Simply check out the options of the SparkFun 9DoF IMU Breakout – ISM330DHCX, MMC5983MA. Whereas versatile and helpful in environments the place wheel encoders could fail, IMUs can undergo from drift over time. Even the tiniest errors can accumulate and result in bigger positioning errors over time.
Optical odometry sensors
Optical odometry sensors, such because the SparkFun Optical Odometry sensor, use visible information to trace motion throughout surfaces, offering excessive precision and reliability particularly in conditions the place wheel encoders would possibly slip. In contrast to IMUs, optical sensors don’t expertise drift however could be affected by modifications in floor texture or lighting circumstances.
Visible odometry
Visible odometry (typically coupled with VSLAM—Visible Simultaneous Localization and Mapping) goes a step additional by utilizing cameras to trace the motion of visible options within the setting to estimate movement. VSLAM not solely gives odometry information but additionally builds a map of the setting; suppose robotic vacuums. This methodology is highly effective in complexity and dynamic environments the place different sensors would possibly fail, but it surely requires important computational assets and could be delicate to lighting modifications, feature-rich environments, and digicam calibration.
Sensor fusion

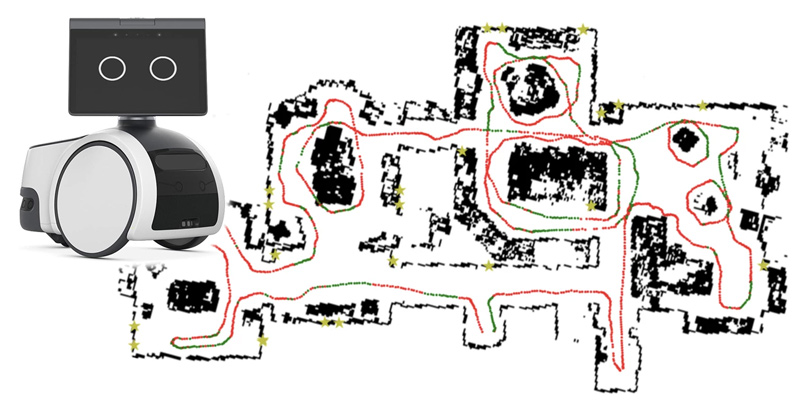

Combining these strategies typically ends in essentially the most strong and correct odometry system. When one odometry methodology has challenges to beat it may depend on suggestions from one other methodology for an correct location. Nevertheless, with any sensor fusion undertaking, complexity is excessive, revolutionary algorithms are required and extraordinary computational energy and reminiscence are wanted. I might suggest this nice article on making use of sensor fusion for odometry from 2020 in regards to the Amazon Astro, a family robotic for residence monitoring.
Photograph courtesy of Amazon.com
Meet the SparkFun Optical Monitoring Odometry Sensor
We’ve talked about it a couple of occasions already however we’re tremendous excited to see how customers combine the SparkFun Optical Monitoring Odometry Sensor. This little gadget takes odometry to an entire new degree. Right here’s a couple of causes we’re enthusiastic about this highly effective little sensor:
- Tremendous Correct: The onboard chip affords distinctive monitoring efficiency with error below 1% after fast calibration in ultimate circumstances.
- This sensor excels at high-speed movement monitoring of as much as 2.5 meters per second (5.6mph), making it a superb selection for navigating warehouse robots, business robots, and different fast-moving functions.
- Area pleasant: Measuring in at a mere 1in. by 1in. and boasts a smaller profile than its trade counterparts. In contrast to bulkier choices that require a number of boards, this sensor encompasses a single-board design.
- Consumer-Pleasant: No person needs to spend hours organising sensors. Because of its Qwiic compatibility, SparkFun made certain this one is straightforward to make use of and combine into your initiatives. The included Arduino and Python libraries and the onboard monitoring algorithm within the firmware streamline the event course of, permitting you to give attention to creating revolutionary robotic functionalities.
There you could have it, I hope you discovered slightly about odometry at this time! As we proceed to discover and increase the functions of odometry, we hope instruments just like the Optical Monitoring Odometry Sensor will play a job in shaping the way forward for autonomous expertise.
