As a normal rule of thumb, robots may be made with inflexible elements and managed with nice precision, or they are often fabricated from softer, extra versatile supplies, however with a lot much less precision of their management programs. Sadly, many use instances require {that a} robotic be each versatile and managed with precision. Such robots might be utilized in delicate medical procedures, the place the flexibility to navigate by way of slim passages and keep away from inflicting harm is important. They may additionally discover functions in house exploration, manufacturing, and past.
Current supplies and methods aren’t getting the job accomplished, so a staff of engineers at Princeton and North Carolina State College got here up with a very totally different method to the issue of controlling a tender robotic. The staff blended trendy expertise with the traditional artwork of origami to develop a worm-like modular tender robotic that may crawl ahead, backward, and make turns with out inflexible elements. And given the modular method that was taken, robots of this kind can work collectively in a swarm, or be a part of into a bigger construction to finish extra advanced duties.
The robotic is shaped from cylindrical segments, every of which is folded right into a Kresling sample. This sample is a typical origami fold that causes a cylinder to snap right into a flat disk-like form when pressure is utilized to it within the correct approach. This bistable nature of the folds, which makes them are inclined to wish to be in a single state or the opposite, was leveraged by the management system.

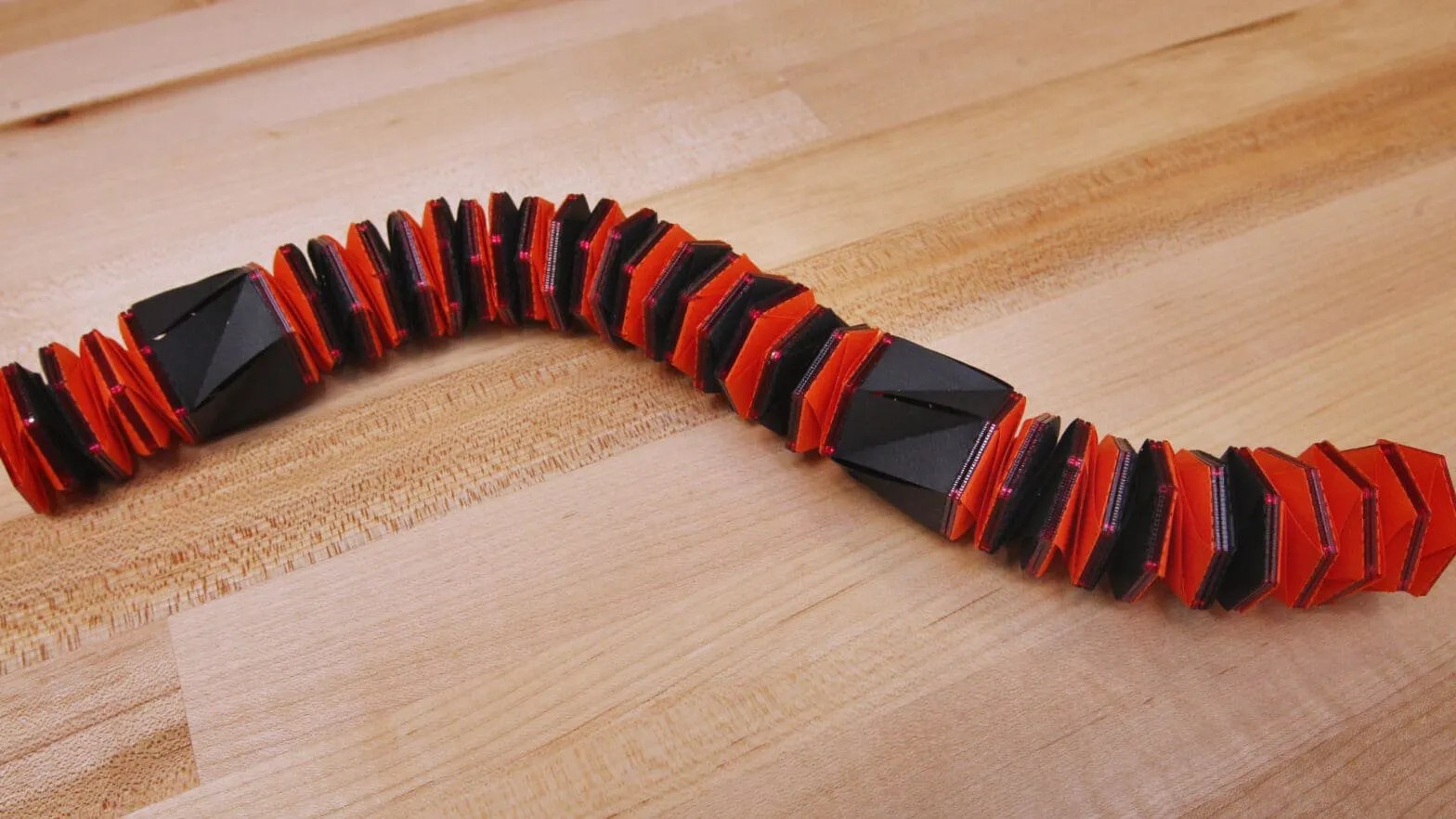

The platform can scale to totally different sizes (📷: Frank Wojciechowski)
By making use of a small quantity of pressure in the appropriate location, the cylinder may be made to partially fold or unfold, which makes it wiggle round in a managed approach that may be harnessed. This was achieved by using a pair of temperature-sensitive supplies, a liquid crystal elastomer and polyimide, that shrink or increase at totally different charges when heated. These tender, stretchable supplies have been hooked up to the origami folds, then a silver nanowire was put in on them. When electrical present is channeled by way of this wire, it rapidly heats up, inflicting the temperature-sensitive supplies to deform, which in flip partially folds the origami construction.
Via a cautious orchestration of the timing of bends at totally different factors alongside the size of the robotic, it may be coaxed into shifting. This might be a flip or ahead motion, relying on how the operator applies present to the nanowire heaters. For segments to connect to at least one one other, they solely must get shut sufficient {that a} set of magnets can pull them collectively.
Whereas these robots are definitely not the appropriate instrument for each use case that requires a tender robotic, their skill to develop, heal, and adapt to new conditions makes them very intriguing. It was additionally famous that the strategy of actuation that was launched on this work might be utilized to different kinds of origami folds in principle, which might additional increase the doable makes use of of this novel platform. However first, there are just a few kinks to work out — the robotic’s actions are fairly gradual presently. However the staff hopes to hurry it up with some extra work within the close to future.
