Offers constant output stability in automotive purposes, even with excessive enter voltage and substantial load variations.
With the automotive business’s shift in the direction of electrification, there may be an growing want for major LDOs that may step down battery voltage to energy MCUs and different elements in ECUs. Car batteries, notably lead-acid varieties, usually expertise sudden voltage fluctuations. Main LDOs should provide glorious line-transient responses in such situations to make sure a constant energy provide.
ROHM has not too long ago launched its new collection of major LDO regulators, the BD9xxM5-C (BD933M5EFJ-C, BD950M5EFJ-C, BD900M5EFJ-C, BD933M5WEFJ-C, BD950M5WEFJ-C, BD900M5WEFJ-C), designed to fulfill the rising demand for environment friendly energy provide options within the automotive business. The important thing options are:
- Regulators are rated at 45V.
- Can present an output of 500mA.
- Superb for powering automotive digital elements.
- Appropriate for ECUs that function immediately from car batteries.

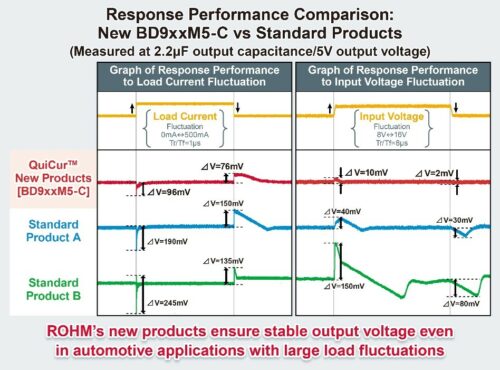

ECUs and different downstream units steadily endure load present variations throughout operation, requiring LDOs with distinctive load-transient response traits. A high-frequency response is essential for fast output voltage restoration, however reaching adequate section margin to make sure steady operation has been difficult. To deal with these points, the corporate has developed the BD9xxM5-C collection with its proprietary QuiCur high-speed load response expertise. This expertise allows the LDO to keep up output inside 100mV of the set voltage, even because the load modifications quickly between 0 and 500mA in 1μs. The low present consumption of 9.5µA (typical) reduces energy consumption in automotive purposes.

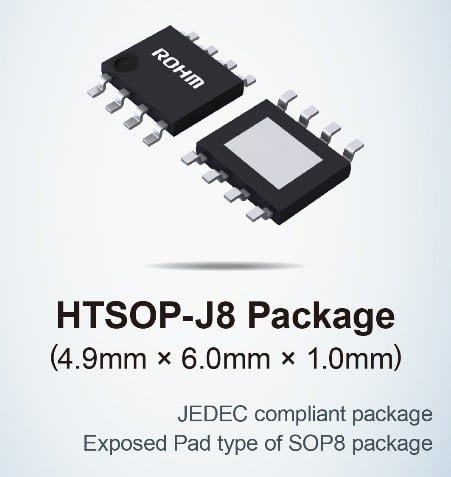

The collection is on the market in 4 packages permitting customers to decide on probably the most appropriate bundle for his or her particular software. The brand new product lineup meets the fundamental necessities for automotive merchandise, together with operation at 150°C and compliance with the AEC-Q100 automotive reliability customary. With 18 fashions deliberate by FY2024, the collection affords a variety of bundle choices, all that includes good response efficiency and low present consumption, due to the QuiCur expertise.
These LDO regulators are appropriate for varied automotive purposes, together with powertrain programs like Gas Injection (FI) and Tire Stress Monitoring Methods (TPMS), physique programs reminiscent of Physique Management Modules, and infotainment programs together with Instrument Clusters and Head-Up Shows (HUDs). This expertise is a singular ‘Fast Present’ high-speed load response circuit. It maximises load response traits with out inflicting instability within the suggestions circuits of energy provide ICs. This expertise permits for steady operation with minimal output capacitance. It allows linear capacitance and output voltage fluctuation adjustment in switching regulators, considerably decreasing the effort and time required for energy circuit design.
