Whereas estimates range, it’s typically accepted that round 15 billion Web of Issues (IoT) gadgets have been deployed worldwide. Many of those gadgets are cell, or are broadly distributed geographically in distant areas, as within the case of an unlimited community of sensors. In these instances specifically, powering the IoT gadgets generally is a large problem. With out with the ability to hook up with {the electrical} grid, batteries are probably the most continuously used supply of power.
However batteries must be recharged, and as they lose effectivity over time, they must be changed. When the variety of gadgets beneath administration is within the 1000’s, and even hundreds of thousands, that rapidly turns into a logistical nightmare — to not point out the expense. These issues have led builders of IoT options to look extra carefully at power harvesting applied sciences in recent times.
A rotary electret generator (📷: Z. Wu et al.)
Power harvesting is the method of capturing and changing ambient sources of power, equivalent to daylight, vibrations, or warmth, into usable electrical energy. Electrostatic mills specifically have captured numerous curiosity for his or her famous potential to transform all kinds of power sources — like wind, waves, vibration, and human actions — into electrical energy. However whereas these mills have confirmed to be extremely environment friendly, versatile, and cheap, additionally they have a essential flaw. They exhibit a excessive output impedance, which causes an impedance mismatch when paired with the electronics in a standard IoT system. This, in flip, ends in a really low effectivity stage when powering these gadgets.
That will not be the case sooner or later, nonetheless, due to the efforts of a analysis workforce at Tsinghua College. They’ve developed an power administration unit (EMU) that considerably enhances the effectivity of electrostatic mills when powering electronics like IoT gadgets. When paired with one particular kind of electrostatic generator, a rotary electret generator, 1.2 instances higher energy output was achieved. Assessments with a triboelectric nanogenerator had been much more spectacular, with energy output being elevated by 1.5 instances.

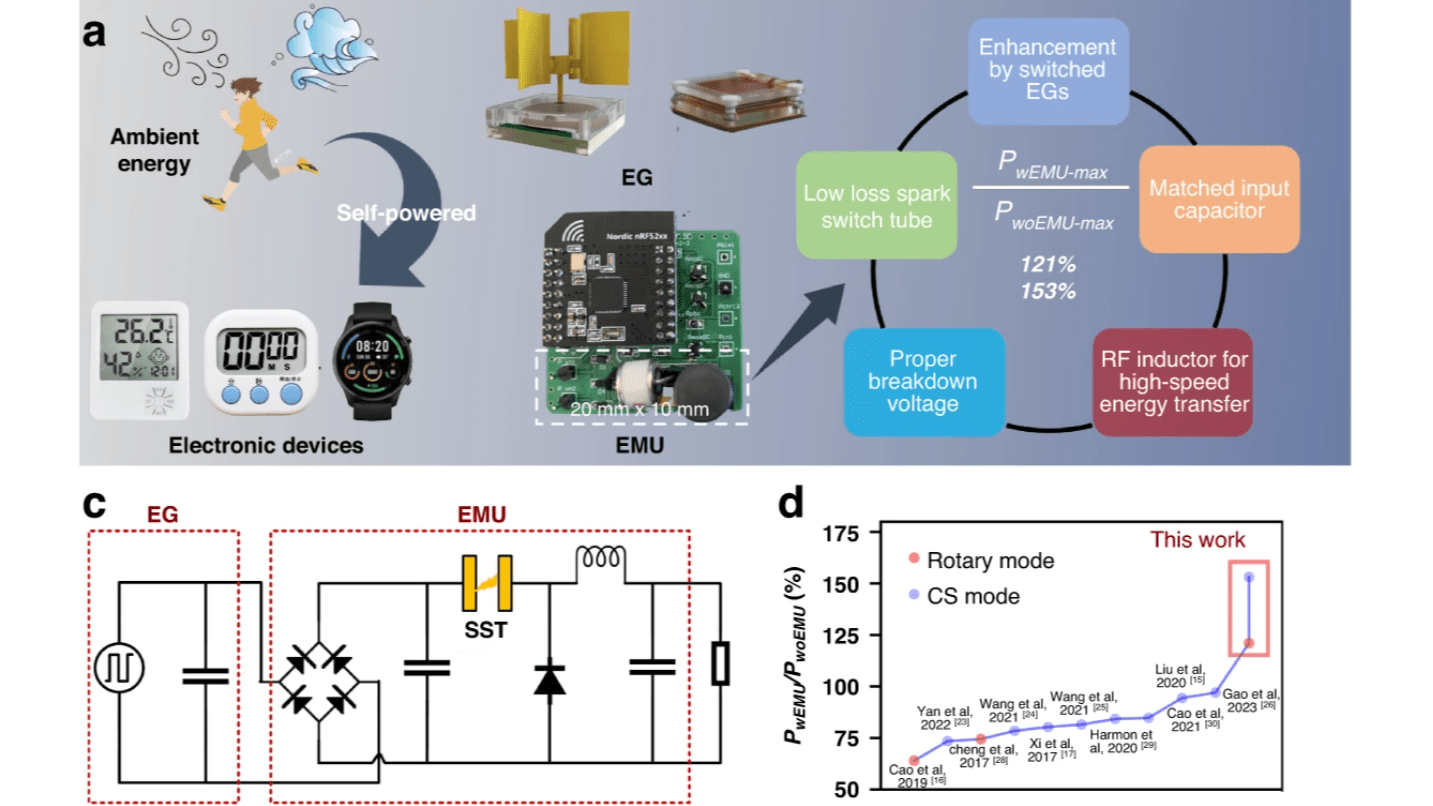

The EMUs key elements embrace a buck converter, chargeable for changing the excessive voltage, low present output from the electrostatic generator to a decrease voltage, greater present output appropriate for digital gadgets. A spark change, which is each extremely environment friendly and dependable, controls the circulation of present by the buck converter. Moreover, an enter capacitor is built-in to boost accessible cost, and an RF inductor facilitates high-speed power switch throughout the EMU.
A wi-fi sensor node used to validate the method (📷: Z. Wu et al.)
To check the EMU, a self-powered wi-fi temperature sensor node was developed. Leveraging an electrostatic generator powered by wind, it was demonstrated that this node may wirelessly transmit sensor measurements each few seconds, even beneath gentle winds touring at 0.5 meters per second. By effectively utilizing the harvested power, the EMU may permit for big networks of sensors like this one to function with little to no upkeep.
This development has the potential to make huge networks of distributed IoT nodes extra sensible than they’ve ever been. And by harvesting power from ambient sources, it may be a boon to environmental safety efforts.
