Rohde & Schwarz, in collaboration with wi-fi communications engineering consultants IMST GmbH, has developed a patented antenna digital twin resolution, successfully addressing a large number of challenges and delivering appreciable advantages for automobile producers and their suppliers to optimize automotive connectivity. The answer combines measurements of the antenna traits with simulation of the electromagnetic wave propagation to optimize the antennas’ design and their place to make sure for instance optimum WiFi protection contained in the automobile.

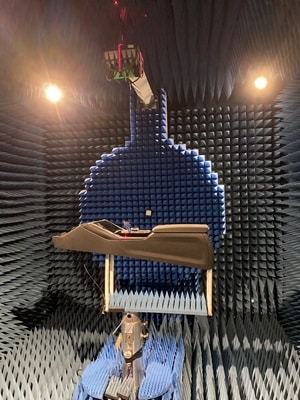

Automobile producers face a number of challenges when integrating antennas out- or in-side their autos. Performing antenna simulations is advanced and time consuming, and simulation outcomes must be confirmed by bodily measurements. Correct measurements in-side the automobile are merely not potential because of the closed automobile atmosphere. A mix of measurements and simulation is required to be able to obtain one of the best antenna place and subsequently additionally connectivity efficiency for the consumer in-side the automobile. Rohde & Schwarz has joined forces with IMST to develop a course of, divided into three steps. The primary entails the characterization of bodily antennas utilizing Rohde & Schwarz check tools, together with an anechoic chamber, a R&S ZNA vector community analyzer, and the R&S AMS32 software program. The second step focuses on the creation of a digital twin by involving the straightforward to make use of Close to Discipline to Far Discipline Transformation Algorithm (FIAFTA). That is adopted by a 3D EM simulation of a digital state of affairs utilizing EM-TWINTM software program from IMST.

– Commercial –

The antenna digital twin resolution from Rohde & Schwarz and IMST presents a number of advantages. Notably, it brings a few important discount in price and time for antenna suppliers and automobile producers by way of the front-loading of antenna validation by combining measurements and simulations. It ensures the correct and constant characterization of bodily antennas by way of the usage of anechoic chambers and vector community analyzers together with the R&S AMS32 automation software program.

Furthermore, the answer considerably reduces growth time as EM-TWINTM simulation outcomes can be found inside hours, not days. The efficiency of the antenna could be enhanced as manufacturing tolerances and reflections from the autos’ our bodies are thought of. The patented EM-TWINTM digital antenna twin supply know-how supplies an distinctive excessive degree of modeling accuracy.

This resolution permits for the optimum location of the antenna to be discovered earlier than the bodily automobile is obtainable, thereby avoiding costly and time-consuming growth cycles. The power to determine the optimum location of the antenna and confirm in-vehicle wi-fi protection is a major benefit, particulalry as a result of standard measurements are extraordinarily tough and unreliable inside the bodily contriants of the automobile. In abstract, the patented antenna digital twin resolution from Rohde & Schwarz and IMST accelerates design cycles and optimizes the situation of antennas on autos, thereby enhancing protection and efficiency earlier than prototypes and chassis change into accessible.
