The RF sampling receiver design can concurrently seize many alternative alerts from the air, checking out the helpful ones and making them clearer for issues like telephones and Wi-Fi.
The RF sampling receiver features by straight buying alerts throughout the radio frequency (RF) band, providing a streamlined strategy to sign seize. In situations involving a number of frequency bands, the alerts of curiosity typically inhabit comparatively slender bands, but they’re distributed extensively throughout the spectrum. This distribution can pose challenges in isolating and capturing particular alerts amidst the broader frequency vary. However, the RF sampling receiver’s functionality to straight seize alerts throughout the RF band facilitates environment friendly dealing with of various sign sources throughout numerous frequency bands, offering flexibility and flexibility in purposes starting from telecommunications to spectrum evaluation.

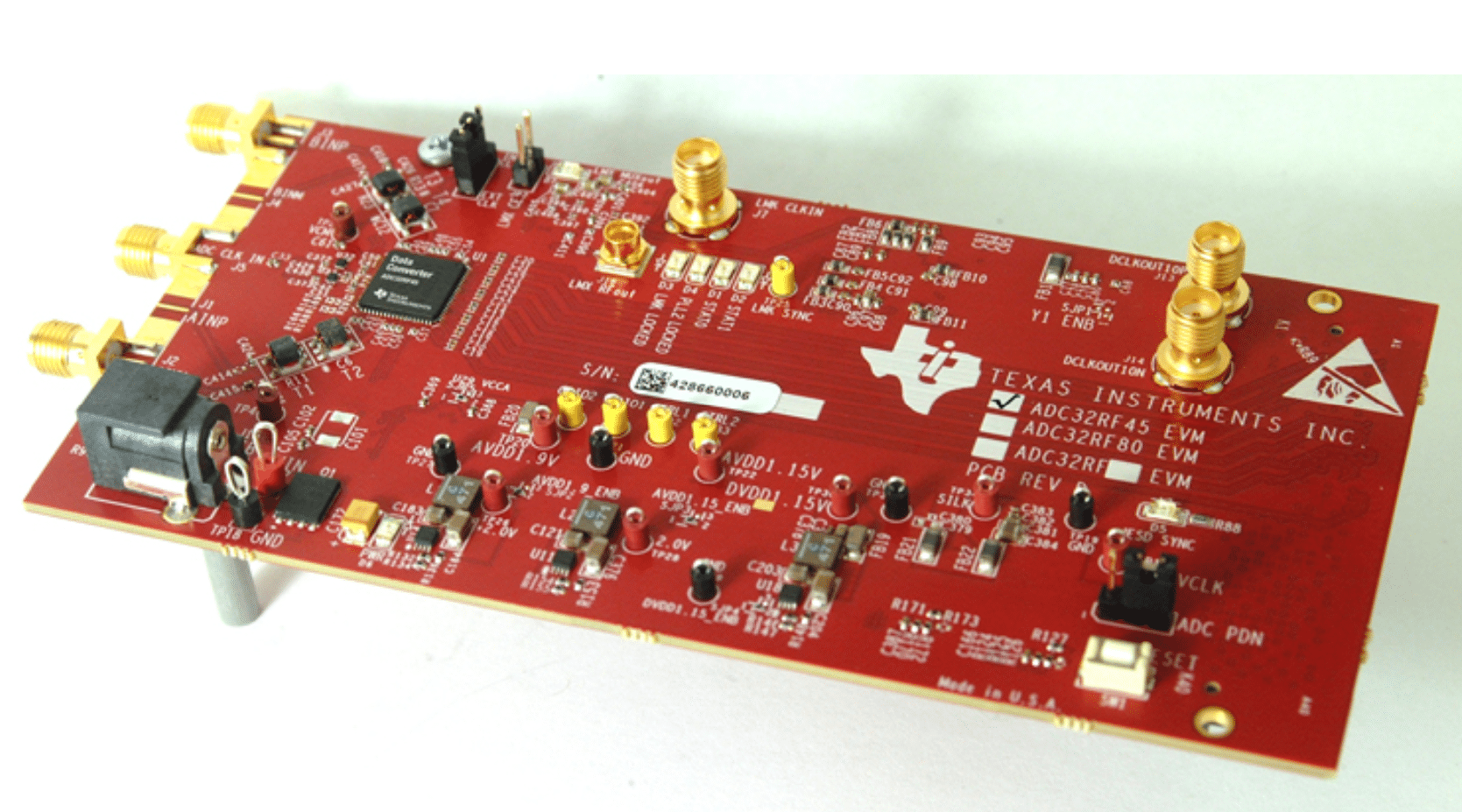

This reference design from Texas Devices (TI) presents an RF sampling receiver that may seize alerts throughout numerous frequency bands. In a broad RF sampling setup, the analog-to-digital converter (ADC) sampling price determines the utmost bandwidth lined. The related data resides inside their particular frequency ranges for purposes involving a number of bands. In distinction, the spectrum outdoors these bands usually carries no worthwhile knowledge and should comprise undesirable interference requiring filtration.
Highlighted on this design is the ADC32RF80 telecom receiver that comes outfitted with two digital down converters (DDC). These DDCs provide decimation values starting from 8 to 32 and have a 16-bit numerically managed oscillator (NCO) for shifting the captured sign to a digital baseband. Leveraging the excessive sampling price of the receiver, the system effectively captures a broad spectrum of RF alerts, together with these unfold throughout a number of bands and potential interfering alerts.
The DDCs independently combine the specified bands to digital basebands. Via decimation, the output knowledge price is decreased, enabling digital filtering across the desired band. This filtering eliminates interference and enhances the signal-to-noise ratio (SNR) efficiency. Such capabilities are essential for high-end telecommunication receivers that demand distinctive dynamic vary.
The design is a cornerstone in wi-fi base station setups, facilitating multi-band or multi-mode reception. Moreover, it performs a pivotal position in multi-carrier GSM receivers, enabling environment friendly sign processing throughout a number of carriers. This expertise operates as a suggestions receiver in digital pre-distortion, enhancing sign high quality. Furthermore, it proves invaluable in telecommunications receivers, making certain strong and dependable sign reception. Moreover, in service aggregation setups, it features adeptly as a receiver, seamlessly managing a number of carriers’ amalgamation.
With a give attention to sign constancy, the design incorporates low noise and excessive dynamic vary capabilities, important for discerning refined alerts amidst various environmental circumstances. Additional enhancing flexibility, the answer provides programmable decimation starting from 8 to 32, enabling exact management over sign processing parameters. Moreover, together with a twin digital down-converter outfitted with unbiased numerically managed oscillators empowers the system to effectively extract and manipulate alerts with precision and autonomy, amplifying its versatility throughout various purposes.
TI has examined this reference design. It comes with a invoice of supplies (BOM), schematics, and many others. You could find extra knowledge concerning the reference design on the corporate’s web site. To learn extra about this reference design, click on right here.
