Bettering the native arcade
All of us want areas to go to/calm down in exterior of the home, and for maker Nick Lombardy, that’s his native barcade referred to as Coin-Op in Chattanooga, Tennessee. After it had reopened, Lombardy was approached by the proprietor of the arcade to construct an enormous gaming system out of glass blocks that might show pictures, animations, and even work together with patrons.
LED and energy concerns
Throughout the wall’s development, which was named “BoneBlocker,” Lombardy needed to first decide one of the simplest ways to rearrange, energy, and management such numerous RGB lights- all whereas staying at an inexpensive value. Given his prior expertise with NeoPixels, he determined to go together with a dense strip of the ever present WS2812B LEDs for operating his exams. The preliminary block had 4 columns with 11 LEDs every, giving a complete of 44 LEDs per block. Nevertheless, all the system would have 112 blocks, that means the facility draw could be far too nice at 1500 watts. As an alternative, solely half the LEDs could be illuminated in every column to chop the density by an element of two and yield solely six pixels per column.
Block by block
The big wall was in-built a nook of the arcade and mounted inside a sturdy wood body for further stability. From right here, Lombardy utilized a beneficiant quantity of sizzling glue to the strips as they unspooled from the highest of the wall and cascaded down. The strips have been run individually to stop massive sections of the system from going darkish because of a fault, they usually have been all terminated at a collection of buses that distribute energy and alerts.
Sending alerts
The unique exams have been run on an Arduino Mega 2560 which leveraged the FastLED library for rapidly outputting knowledge to the strips. And despite the fact that it had loads of GPIO, the Mega’s comparatively sluggish clock velocity and USB interface meant the utmost framerate was round 3-5 fps, which is just too sluggish to play a recreation that requires fast inputs. Fixing this problem meant swapping out the Mega for eight WT32-ETH01 boards that help Ethernet connectivity and are controllable through WLED over an internet interface. One fast addition of logic-level converters meant Lombardy was prepared to begin writing some software program.
Going from recreation to display

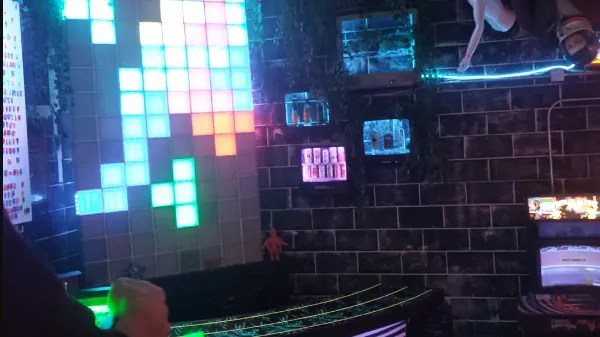

Most LED matrix initiatives run the sport straight on the microcontroller, however as a result of distributed nature of the management scheme and requirement for quick display updates, a extra highly effective host was wanted. Lombardy wrote his Tetris-inspired recreation for a Node.js webserver and leveraged the favored Three.js library for 3D graphics. Each time the sport display updates, it sends calls to the WLED net API for displaying the newest pixel colours.
The controller
Gamers are capable of work together with the sport because of a a lot smaller model of the show mounted onto an X/Y pivoting mount that’s much like a standard joystick. However not like a joystick, the highest is one other glass block that comprises 185 LEDs for exhibiting animations and giving participant suggestions. The block, speaker, and sensors have been all mounted onto a wood podium construction that sits at participant top to imitate the texture of an arcade cupboard.
Lighting all of it up
As seen on this video by Lombardy, the controller works nice for translating the participant’s actions into gamepiece translations/rotations that the wall may show. To learn in regards to the strategy of constructing BoneBlocker, you may learn Lombardy’s mission write-up right here on his weblog.
