After an extended week, there are few higher methods to blow off some steam and have a great time than to get along with pals on the native pub for a sport of darts. But when your mates occur to be much better on the sport than you might be, it may be a bit embarrassing. Because the defeats, and the taunts, proceed to pile up, the sport can begin to lose its allure and go away you wanting to cover below the desk to make the ache cease.
That is one thing that was skilled by YouTuber Niklas Bommersbach once in a while. However whereas Bommersbach is probably not a world-class dart thrower, he’s fairly superb relating to designing robots. Taking inspiration from Mark Rober’s dart enjoying robotic , Bommersbach determined to construct his personal model to tackle his pals. However Rober’s dartboard moved to satisfy the thrown dart and assure a bullseye, which Bommersbach noticed as dishonest.
Bommersbach didn’t see a robotic that throws the dart for you as dishonest, you understand, for causes, so he got down to construct such a system. Having beforehand designed a beer pong enjoying robotic , which is already outfitted to make precision throws, Bommersbach determined to change it for this new position.
The robotic consists of a spinning arm that’s hooked up to a pair of legs. Because it had been designed, there was an alignment challenge — the attachment factors of the arm’s axis of rotation didn’t align completely on every leg. This resulted in a little bit of wobbling that will make the accuracy of a dart throwing robotic unacceptable. So first, a repair referred to as the Misaligned Axes Wobbling Alignment System (MAWAD) was developed. It consisted of a pair of magnetic plates fixed along with metal ball bearings. Utilizing the MAWAD to make the axis attachment on one aspect allowed for correct alignment with out wobbling. A linear rail and motor have been additionally added to permit for horizontal motion of the machine.
After making these, and some different, enhancements, the dart thrower was examined, however discovered to have points with repeatability. Bommersbach discovered that these issues had two major causes — timing and launch pace. An Arduino Uno was answerable for calculating the arm place and pace, acceleration ramps for the stepper motors, stepping the primary motor, and driving the discharge servo. Since all of those duties have been carried out sequentially, some variable period of time handed between when the arm was on the appropriate angle and when the dart was truly launched. The discharge pace of the dart was additionally a lot too sluggish, owing to the servo that was used. This resulted in a prolonged interval of uncertainty the place the dart was not fairly being held or launched, and might be thrown at an unpredictable time.
These issues have been addressed by including a second Arduino with a magnetic sensor that was triggered when it was in shut proximity to a magnet that signaled that the arm was on the correct angle. This Aduino then triggered the discharge motor. The sluggish servo was additionally changed with a really quick stepper and belt association that made the discharge too quick to be seen by the bare eye.
To wrap issues up, Bommersbach constructed a pc vision-based system that used an object detection algorithm to detect the place darts hit the dartboard for scoring. This technique was additionally leveraged to find out the optimum arm rotation pace for probably the most correct throws. Lastly, the linear axis was integrated into the system to permit the robotic to focus on any place on the dartboard.
The finished machine was examined out in a sport towards Bommersbach’s pals. It had no hassle beating human opponents, sparing Bommersbach the disgrace of being badly crushed — if he can take solace in understanding that it was a robotic that truly earned the victory, that’s.
It was famous that the robotic was extraordinarily delicate to environmental elements, which might be a problem if the robotic have been to make a highway journey. Even a change within the room’s temperature might throw off the system’s accuracy. However in any case, this construct is a really enjoyable answer to Bommersbach’s downside, and the video is properly value a watch.

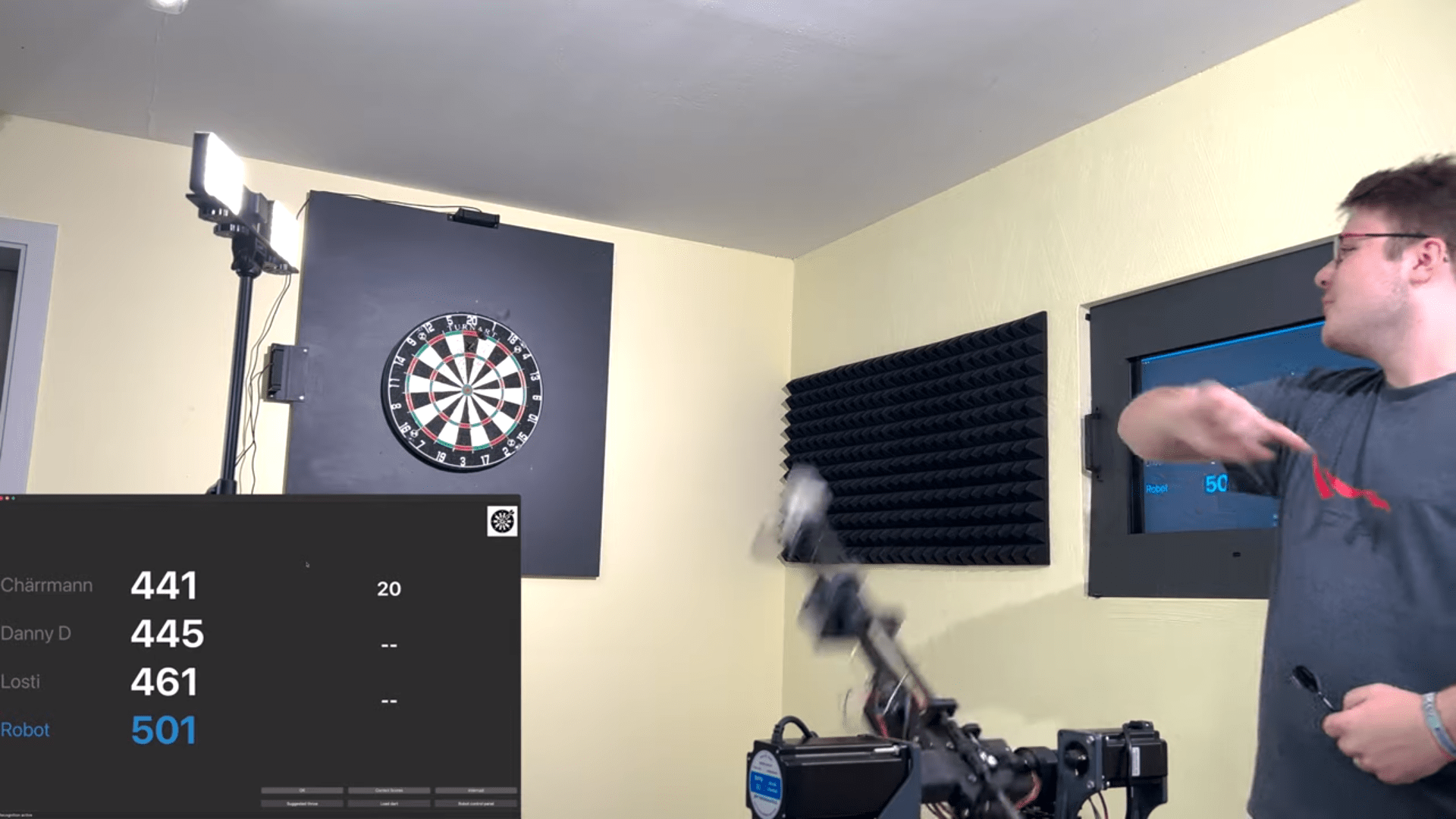

People are not any match for this dart enjoying robotic (📷: N. Bommersbach)
