Many of the actions that we’re engaged in in our day by day lives contain our palms in a technique or one other. Whether or not one is selecting up a cup, typing on a keyboard, performing a fragile surgical procedure, or taking part in a grand piano, the palms play an important position. It ought to come as little shock then that there’s appreciable curiosity in growing a sensible technique of monitoring the place of the palms in three-dimensional area. This data has many functions within the space of human-computer interplay, for instance, the place it may be utilized for contextual consciousness or as an enter technique.
Immediately’s hand monitoring techniques have their share of points, nonetheless. These points largely stem from the truth that they mostly depend on cameras to glean details about the palms. Photographs are susceptible to have lacking information attributable to both partial or full occlusions of the palms. These may result from the presence of any variety of objects that get in the way in which, and even from one portion of the hand blocking one other from view. Given the excessive diploma of flexibility of the hand, these occlusions can render present techniques inaccurate in some instances.
The system makes use of sound waves to trace hand place (📷: C. Lee et al.)
Apart from accuracy issues, camera-based techniques additionally typically require a big quantity of computational horsepower for processing, and the requisite power for his or her operation, which is impractical for cell units. Furthermore, many privacy-related points come up from the usage of an always-on digital camera. Accordingly, there’s a want for various options that may overcome these points with current hand monitoring applied sciences.
An attention-grabbing answer was lately put forth by a workforce of researchers at Cornell College. They’ve developed a wrist-worn gadget that they name EchoWrist. Moderately than counting on a digital camera, EchoWrist as an alternative makes use of acoustic sensing to detect hand poses, and in addition to acknowledge objects close to the hand. This sensing modality requires little energy and computational sources, but it was demonstrated to be fairly correct. The usage of sound waves additionally serves to protect the person’s privateness, which can assist to make it an appropriate substitute for camera-based techniques sooner or later.
EchoWrist consists of a silicone band worn on the wrist that’s geared up with two pairs of audio system and microphones — one pair is positioned above the wrist, and the opposite beneath, to get a full view of the realm. These are wired to a customized PCB containing a Nordic Semiconductor nRF52840 microcontroller, an audio amplifier, and an influence administration module. The gadget is powered by a small LiPo battery, which might preserve it working all day lengthy earlier than a recharge is required. An onboard Bluetooth Low Power transceiver permits the wristband to wirelessly talk with different units.

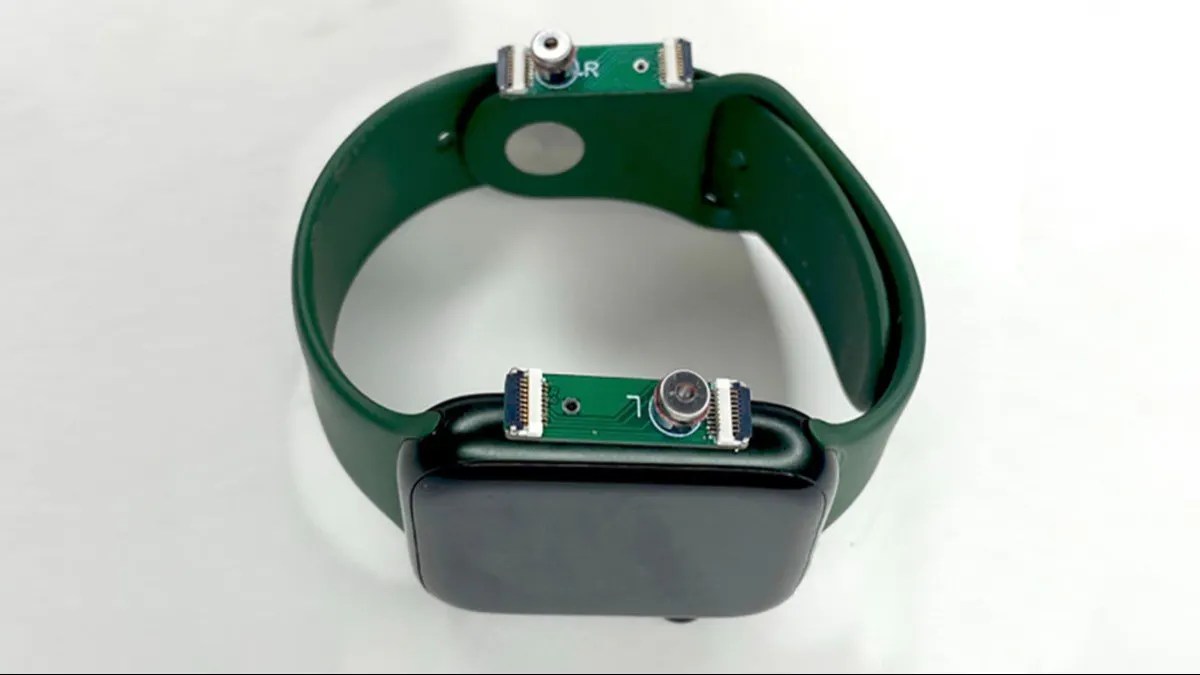

The {hardware} elements (📷: C. Lee et al.)
The audio system emit frequency-modulated steady waves, that are inaudible, towards the hand. Because the sound waves strike the hand, they’re mirrored and diffracted and journey again within the course of the microphone, which captures the sound sample. This data is then forwarded right into a convolutional neural community, which predicts the three-dimensional positions of twenty finger joints, which permits the hand pose to be decided. This algorithm may also acknowledge many objects which can be being held within the hand, in addition to different kinds of hand-based interactions.
EchoWrist was evaluated in a sequence of trials involving twelve individuals. These experiments revealed that the system might observe finger positions with a imply joint Euclidean distance error of 4.81 millimeters and a imply joint angular error of three.79 levels. The popularity capabilities of the gadget have been additionally evaluated, and it was discovered that it might detect a set of a dozen widespread hand-object interactions, like holding a cup, with 97.6% accuracy.
Sooner or later, the workforce hopes to combine EchoWrist with an off-the-shelf smartwatch. Such an integration might lengthen the advantages of hand monitoring to a a lot wider viewers.
