Fueled by improvements in a variety of digital parts and computing items, in the present day’s wearable units are smaller and extra highly effective than ever earlier than. As such, these wearables are usually not solely able to performing a variety of helpful duties — like monitoring our well being, bettering our productiveness, and enhancing the immersion of our leisure experiences — however they’re additionally in a position to transparently combine into our every day lives with out being cumbersome. Nicely … nearly, anyway.

To various extents, all of those in any other case improbable wearable units have an Achilles’ heel — energy supply. The batteries that they often use are inflexible and hulking, including weight and making the units uncomfortable to put on. Moreover, the necessity for frequent recharges will get tiresome, and sometimes causes customers to toss their shiny new system in a drawer and neglect about it. Worse but, wearables that carry out a steady monitoring perform — as is the case with a well being tracker — should be eliminated to cost. This causes essential knowledge assortment capabilities to stop for hours at a time.

Researchers have tried to resolve this drawback in a wide range of methods. Power harvesting is one standard method. These methods permit physique motions to be transformed into electrical power to energy the units. Nevertheless, the {hardware} tends to be cumbersome, and power manufacturing is sporadic. Harvesting power from photo voltaic cells or extra unique sources like RF power have additionally been tried, however have a tendency to supply vanishingly small quantities of energy.

A workforce on the College of California, Los Angeles has provide you with a really intelligent method that leverages the facility of mechanical power harvesters to supply substantial quantities of power, however strikes them off-body for consolation. They constructed these power harvesters into a wide range of on a regular basis objects, like wheels, doorways, and cranks. Power is transferred by means of the human physique from these harvesters to the wearable system through capacitive coupling to allow charging with out eradicating the system or taking every other intentional motion.

The researchers name their energy technology system Interplay-Energy Stations. By usually interacting with on a regular basis objects — maybe opening a door — electrical power is produced. That power is then transformed into high-frequency indicators that may propagate by means of the human physique on contact. A transmitter electrode on the harvester contacts a receiver electrode on the physique to provoke a cost. The power can then circulate by means of the tissues of the physique, as they’re naturally considerably electrically conductive.

The astute reader will instantly acknowledge that there should be a return path to finish {the electrical} circuit, and for the reason that physique can’t be partitioned into a number of sign strains, the Interplay-Energy Stations method seems to have a deadly flaw. To cope with this example, the researchers launched transmit and obtain floor electrodes which can be positioned simply above the physique and the harvesting system. This creates a separate return path, through capacitive coupling, to finish the circuit and permit electrical energy to circulate to the wearable for charging functions.

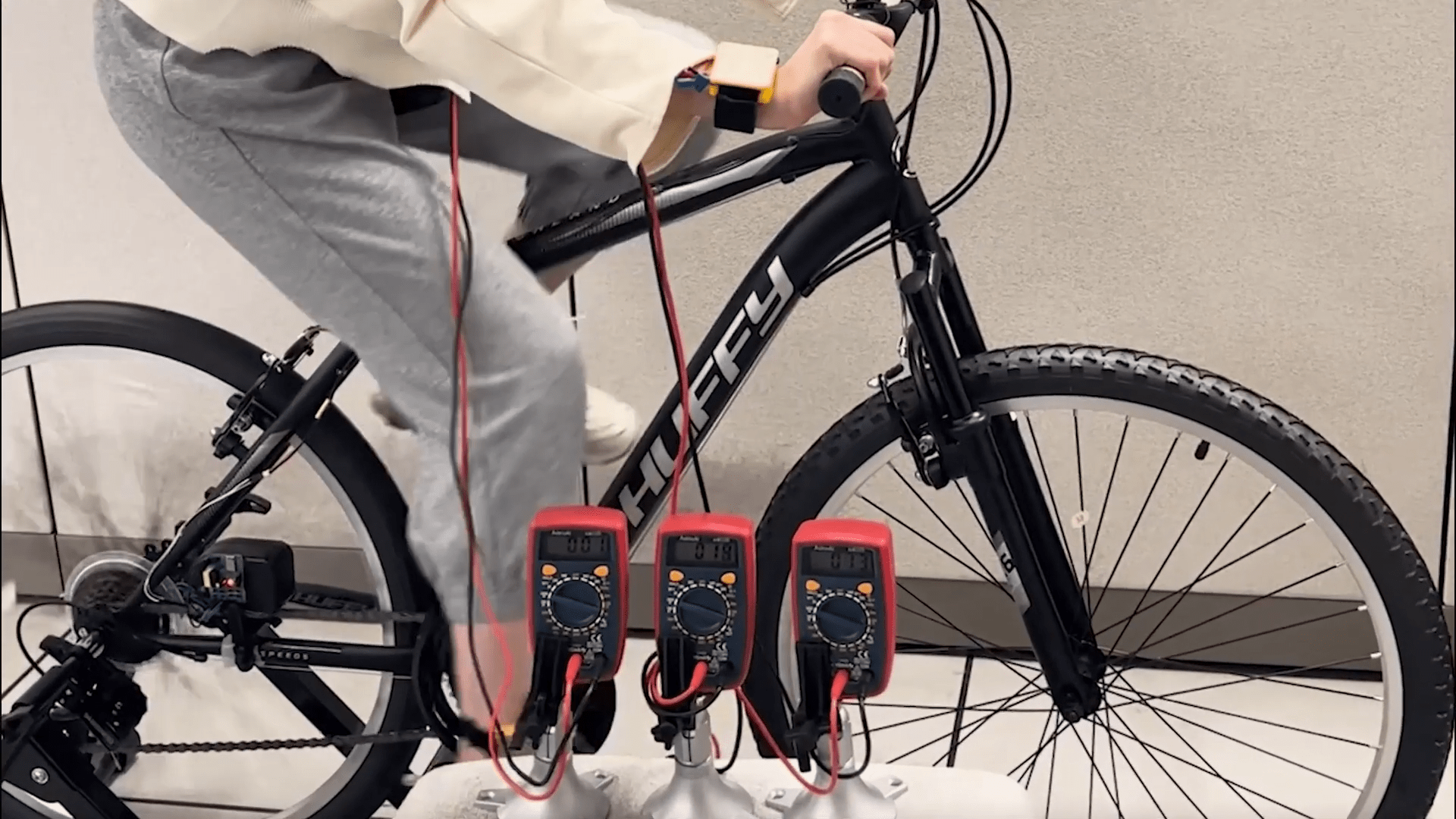

To validate their system, the workforce constructed three prototype units. After equipping a bicycle, hand crank, and door with power harvesters, they charged a capacitor on a wrist-worn system. These techniques produced between 0.08 and 0.87 microjoules of energy. That is far in need of the 1.21 gigawatts one would want for time journey in a DeLorean, and properly, frankly it’s not rather a lot for many wearable units both. However, it’s a very attention-grabbing idea and a great start line — few applied sciences arrive fully-formed. With a bit of labor, Interplay-Energy Stations may sooner or later cost complete networks of on-body electronics.
