Have you ever ever began a challenge pondering it could be fairly easy to finish, solely to have the challenges pile up till they fashioned a seemingly insurmountable mountain of issues? If not, hold round for some time and you’ll have this expertise quickly sufficient. A Dutch mechanical engineer named Yvo de Haas took on a challenge of this type six years in the past pondering it could be a breeze, and has solely simply completed it.

The thought behind this construct, referred to as the Robotic Sport Board, was to make a type of upgraded model of the board recreation referred to as RoboRally. However this was to not be merely a duplicate of the unique recreation — what can be the purpose of that? Because the title implies, Robotic Sport Board is in the beginning robotic. Gamers solely want to decide on which playing cards to play, and the motion on the board will maintain itself. It was additionally given a steampunk theme, a number of playable maps, and assist for as much as eight gamers.

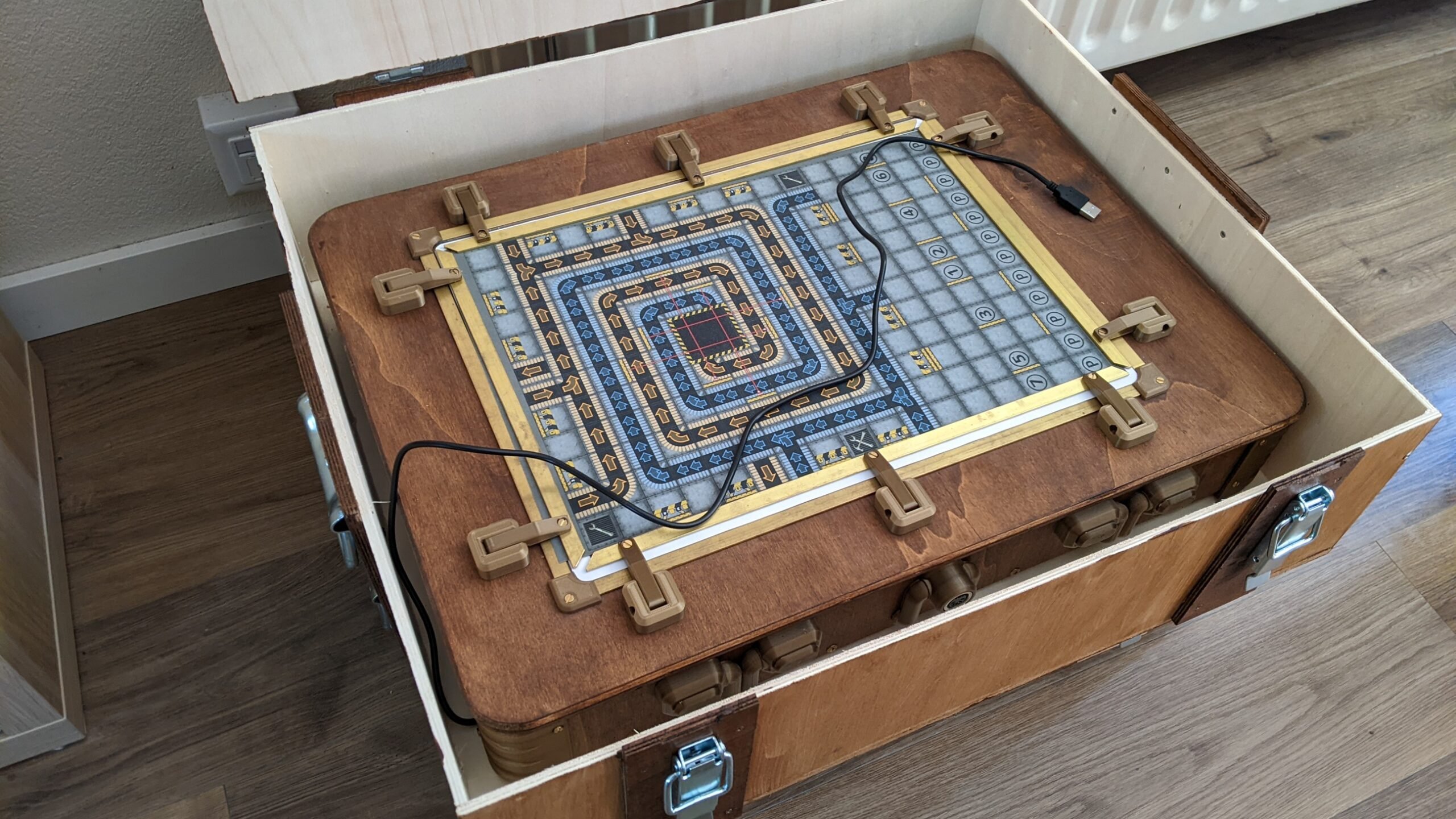

The board itself was made out of customized, 3D-printed components and 9mm plywood. A gantry was constructed into the board, and is able to being moved to any x,y place on the floor of the board. The gantry strikes a head with a retractable magnet round, which interacts with participant items on the board to maneuver them and alter their orientation as wanted. The look of the board was made full by staining the wooden and including some brass strips. A sheet of glass was additionally put in to function the taking part in floor.

To regulate the gantry, an Arduino UNO with a CNC defend was put in contained in the board. This works at the side of an Arduino Mega, which controls each the magnetic head and card readers. Different supporting electronics like multiplexers, motor drivers, and voltage regulators had been additionally fitted into the casing.

A set of card readers comprise Waveshare 1D/2D barcode scanner modules. These learn two-dimensional Knowledge Matrix codes which have been printed on every card. The codes comprise the whole perform of the cardboard in a textual content format. That info is used to find out the actions that the board ought to take by the software program that powers it.

The sport board floor was created utilizing a customized tileset designed in Blender, which incorporates recreation parts like flooring, partitions, belts, and beginning positions. This tileset was organized utilizing a software program instrument referred to as Tiled, the place the sport map might be simply designed and modified. The finished map design was then printed on A3-size paper. To guard the printed board from put on and tear throughout gameplay, the paper was laminated, offering a sturdy floor. After laminating, every board part was rigorously reduce to the proper dimensions, with the corners clipped for a easy, rounded end.

Software program written in Python is the place the sport really performs out, and it instructs the Arduinos to reflect the digital motion on the bodily recreation board. It manages all recreation logic, interfacing with the cardboard readers to course of participant inputs and management the mechanical motion of the gantry.

Constructing the Robotic Sport Board has been an extended journey, and it isn’t fairly over but. Trying forward, de Haas desires to reduce the necessity for gamers to have to take a look at the pc that runs the sport software program, however because it presently stands, it’s important for understanding the present recreation state. And, as you would possibly count on, there are many different concepts for enhancements as properly. Whether or not or not this challenge will ever really be completed remains to be up within the air.
