Space Scanner Utilizing mmWave Sensor Reference Design

Discover a mmWave radar design that scans objects in 3D, detects zone breaches, and simplifies deployment. Need to know extra? Learn right here!

The TIDEP-01010, a reference design from Texas Devices (TI )makes use of TI’s single-chip millimeter-wave (mmWave) expertise to create an space scanner that detects and maps objects in 3D area. The corporate claims that the mmWave sensing is well-suited for industrial functions because of its resilience to warmth, water, mud, and poor lighting. Purposes embody space scanner security guards, proximity sensors, and lightweight curtain security guards. The design engineers can make the most of this reference design to quickly deploy efficient and dependable mmWave sensing options, making certain faster time-to-market.

The design is predicated on the IWR6843 mmWave sensor and integrates a whole radar processing chain, together with radar configuration, ADC seize, low-level FFT, and sign processing. It’s constructed on the TI mmWave SDK, offering a seamless software program expertise with APIs, libraries, and instruments for analysis, growth, and information visualization.

– Commercial –

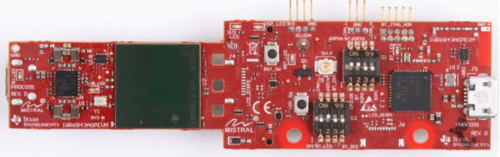

The reference design will be applied utilizing both the IWR6843ISK or IWR6843AOP EVM. Each modules allow the detection of objects inside the sensor’s subject of view and signify them as 3D level clouds. The EVMs are user-friendly analysis modules for the mmWave sensing gadget. These single-chip units characteristic a 60-GHz mmWave radar transceiver, an on-chip C67x DSP core, and low-power ARM R4F controllers.

The mmWave sensor is preloaded with a flashed picture that, when booted and initialized, receives a chirp configuration set by means of the realm scanner visualizer. Within the visualizer, customers can outline the placement and dimensions of monitoring zones and regulate visualization settings. The configured chirp is then despatched to the sensor, monitoring the desired space for zone occupancy.

– Commercial –

The radar gadget detects the strongest reflections and studies them as objects to the host PC through UART. Because the sensor observes, these detected objects kind a degree cloud illustration of the scene. If an object produces a degree cloud with no less than 15 factors inside a monitored zone, the zone is flagged as breached, and the visualizer updates to point the occupied space.

The design helps sensing ranges from 0 m to 10 m, with an azimuth subject of view (FOV) of as much as 120° utilizing the IWR6843ISK or 130° in each azimuth and elevation utilizing the IWR6843AOP. The design references the processing chain supply code supplied with the mmWave SDK and is predicated on confirmed EVM {hardware} designs, permitting fast time-to-market and out-of-the-box demonstrations.

This reference design demonstrates the detection of individuals or objects getting into a zone in an indoor surroundings. The system consists of static muddle elimination to make sure accuracy, stopping everlasting fixtures like partitions from triggering zone occupancy detection. The chirp configuration is designed to attain excessive doppler decision, adequate vary decision, and most velocity, enabling exact localization and monitoring of human motion, together with strolling.

TI has examined this reference design. It comes with a invoice of supplies (BOM), schematics, meeting drawing, printed circuit board (PCB) structure, and extra. The corporate’s web site has extra information in regards to the reference design. To learn extra about this reference design, click on right here.
