Management A number of AC Home equipment Wirelessly with Net Interface

In immediately’s period of the Web of Issues (IoT), good house automation has developed from being a luxurious to an accessible and important a part of fashionable dwelling. This venture demonstrates a scalable and real-time house automation system constructed across the highly effective IndusBoard Coin, a compact improvement board based mostly on the ESP32-S2 microcontroller.

The system permits customers to wirelessly management a number of AC home equipment like lights and followers by way of an interactive net interface hosted instantly on the board itself, with out requiring any exterior cloud companies or cell apps.

In contrast to conventional automation methods that solely supply ON/OFF management by way of relays, this venture takes a step forward by integrating PWM-based fan pace management, enabling clean real-time adjustment of AC fan pace through a slider on the webpage.

The board generates PWM indicators from its GPIO pins, that are then despatched to an AC Fan Velocity Controller module that modulates the fan pace accordingly.

On the identical time, commonplace relay modules are used to regulate the switching of lights and followers. The Coin board’s GPIOs are linked to the relay modules, performing as digital switches for turning home equipment ON or OFF with a easy faucet on the internet interface.

– Commercial –

The system runs on Wi-Fi Entry Level (AP) mode by default, permitting customers to attach their telephones or laptops on to the IndusBoard’s Wi-Fi (SSID: IndusBoard_AP) and entry the management panel by way of a browser.

Nonetheless, this may simply be modified to Station Mode (STA), the place the board connects to your house Wi-Fi community. On this mode, any gadget on the identical community can entry and management the system by way of the board’s native IP tackle, enabling seamless integration into current good properties.

One of many main benefits of utilizing the IndusBoard Coin is its excessive variety of obtainable GPIOs (30+ pins), which suggests this method just isn’t restricted to only two lights and a fan. It may be simply scaled to regulate further home equipment by merely connecting extra relays or PWM controllers to unused GPIOs and increasing the person interface accordingly.

– Commercial –

For instance, further buttons and sliders could be added to the webpage to regulate extra lights, followers, and even future sensors like movement detectors, temperature sensors, or LDRs.

Invoice of Materials

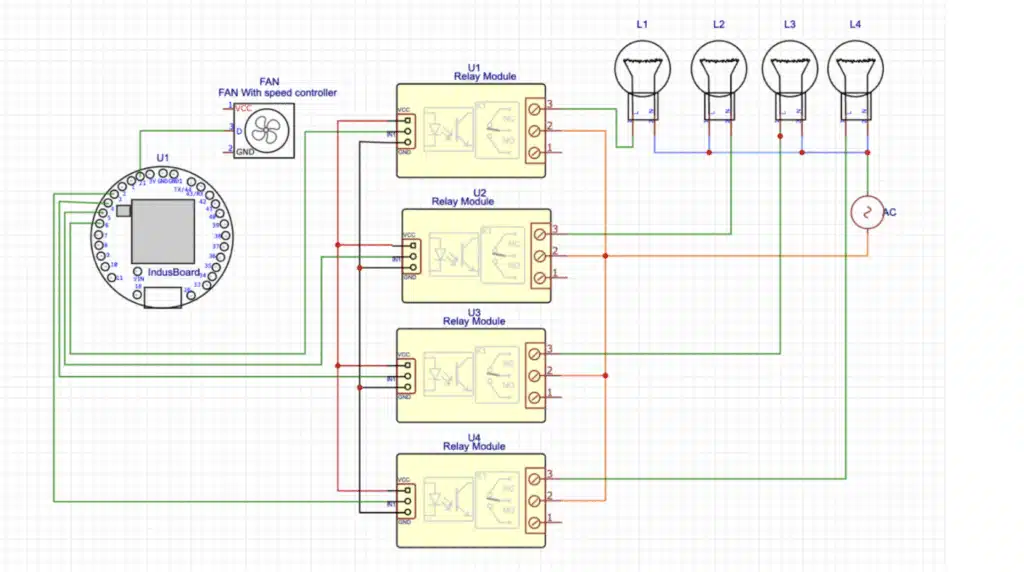

Circuit Diagram

Right here, IndusBoard Coin acts because the central mind of the complete good house automation system. It not solely processes management instructions but additionally establishes wi-fi communication by making a Wi-Fi Entry Level (AP mode) or by connecting to an current Wi-Fi community utilizing Station (STA) mode.

By means of this connectivity, the Coin board hosts a real-time interactive webpage that permits customers to regulate linked home equipment instantly from a browser. Utilizing its a number of GPIO pins, the board sends digital management indicators to numerous actuators equivalent to relays and fan pace controller modules.

The relay modules, linked to GPIO pins (for instance, GPIO 3 for Gentle 1 – GPIO 6 for Gentle 4), function the switching interface for AC home equipment like bulbs or followers. These relays operate as electrically operated switches, toggled by the digital HIGH or LOW outputs from the Coin board.

For followers, whereas an everyday relay can solely flip the fan ON or OFF, integrating a fan pace controller module, equivalent to an AC dimmer or a PWM-compatible controller, allows variable pace management.

This module receives a PWM sign—sometimes from a pin like GPIO 21—the place the obligation cycle or firing angle of the sign determines the precise fan pace. This permits for a clean and exact adjustment of fan pace instantly by way of the online interface, offering a whole and superior good automation expertise.

The relay module acts like an digital swap that isolates and safely controls the AC facet of the circuit. Every relay channel on the module has enter management pins linked to one of many GPIO pins of the Coin board (as an example, GPIO 3 is linked to regulate Gentle 1, and GPIO 6 to regulate Gentle 2).

When a digital HIGH sign is shipped from the Coin board to the relay enter pin, it triggers the inner electromagnetic coil contained in the relay, which closes (or opens) a swap on the AC facet, permitting present to circulate by way of the linked equipment.

To attach an AC bulb or different AC equipment, the Reside (L) wire from the mains energy provide is first linked to the Widespread (COM) terminal of the relay. The Usually Open (NO) terminal is then linked to at least one terminal of the AC bulb or equipment. The opposite terminal of the equipment is linked on to the Impartial (N) wire of the mains provide.

When the relay is activated by the Coin board, the circuit between COM and NO closes, finishing the trail and powering ON the equipment. When the relay is deactivated, the circuit breaks, and the equipment turns OFF.

This configuration ensures that high-voltage home equipment are safely switched utilizing the low-voltage logic stage management from the Coin board, conserving the person and the controller board remoted from harmful AC voltages.

A number of such relays could be linked to a number of GPIO pins on the IndusBoard Coin to regulate a number of home equipment individually and in actual time from the online interface.

Moreover, the system could be expanded simply as a result of availability of over 30+ GPIO pins on the Coin board, making it extremely scalable and adaptable for bigger good house setups.

Code

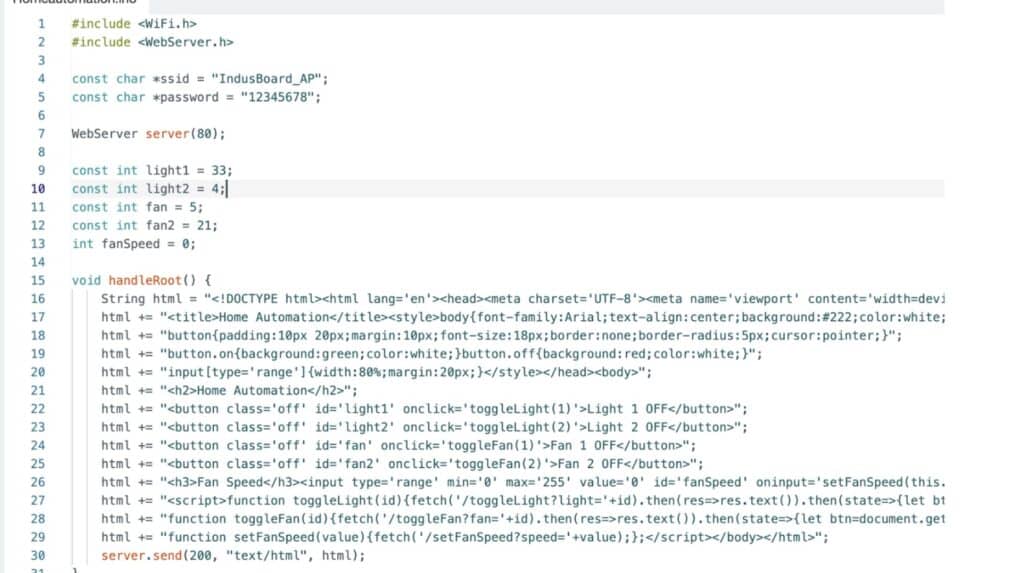

The code begins with the definition of GPIO pins assigned to regulate varied home equipment like lights and followers.

After that, a easy and interactive HTML webpage person interface (UI) is created throughout the code utilizing embedded HTML and JavaScript, permitting customers to regulate home equipment in actual time by way of any browser. The pinMode() operate is used within the setup part to configure every GPIO pin as an output.

The Wi-Fi settings are configured to allow Entry Level (AP) mode, so the IndusBoard Coin can create its personal wi-fi community for customers to attach instantly.

The code additionally initializes the online server, defines routes to deal with button clicks and fan pace management instructions, and repeatedly checks for incoming shopper requests within the loop to make sure clean operation of the automation system.

Testing

Now, energy on the gadget and relay. Then, open the Wi-Fi settings in your telephone or laptop computer and seek for IndusBoard_AP. Connect with it utilizing the password set within the code.

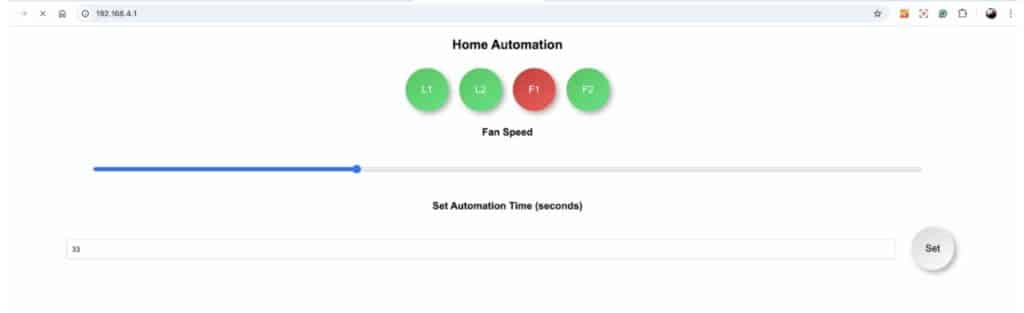

Subsequent, open an internet browser and enter 192.168.4.1 within the tackle bar. From there, you’ll be able to management home equipment equivalent to mild bulbs, followers, and AC items. Use the slider bar to regulate the pace and the textual content enter to set automation. The system will robotically flip off all home equipment after the desired time.
