Make Your Personal Interactive Flip-Disc Artwork

Flip-disc shows have been round for a very long time, however with the rise of cheap, high-resolution show applied sciences, they largely went the best way of the dodo chicken. Within the {hardware} hacking group, nevertheless, obsolescence just isn’t essentially a nasty phrase. We love our retro computer systems, clocks, online game consoles, and radios — and flip-disc shows even have a variety of followers. The low-resolution monochrome show just isn’t proper for each job, however the satisfying clicks and mesmerizing patterns created by a altering picture make them fairly interesting for a lot of functions.

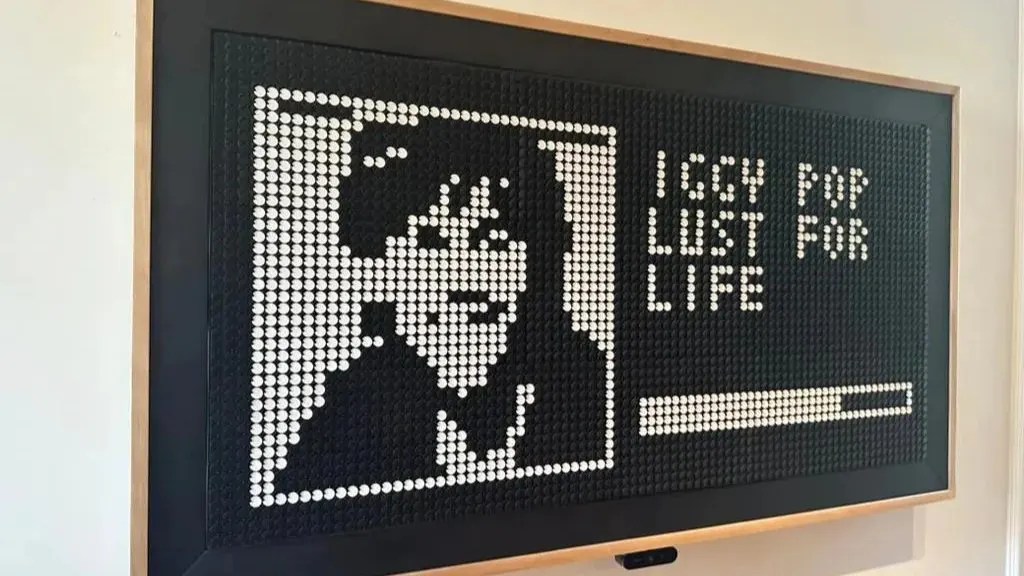

In case you are intrigued by flip-disc shows, however will not be certain methods to get began in creating your personal, then inventive engineer Kathy Korevec’s information is likely to be simply what you must rise up to hurry. Korevec designed and constructed a big, 84 x 42 pixel show that’s meant to be held on the wall like a chunk of artwork. And other than displaying static photographs and animations, it is usually outfitted to interactively reply to voice and video streams captured from the viewer of the show.

The show is made up of a grid of off-the-shelf Alfazeta flip-disc panels. These panels are powered by an ATmega128 microcontroller, and have all the needed circuitry to individually management the pixels by way of an RS-485 interface. Because the show is mechanical, it requires fairly a little bit of energy — 24 volts at 9 amps, which is delivered by a 24 volt, 10 amp Meanwell energy provide.

A really slick body was constructed utilizing 80/20 aluminum extrusions. The PCB standoffs have been instantly screwed into these frames, however Korevec notes that a variety of warning is required with this step. The flip-dot modules are very, very fragile.

After chaining collectively the separate flip-dot modules and powering them up, it was time so as to add some intelligence to the system. An NVIDIA Jetson Orin Nano Developer Equipment, together with an IMX708 digicam and a Waveshare audio board, have been added to the construct. This makes it potential not solely to ship the suitable alerts to drive the show, but additionally to run some highly effective machine studying algorithms. With instruments like MediaPipe for pose detection, the show can, for instance, mirror the actions of an individual standing in entrance of it.

The consumer interface of a private undertaking like that is normally missing. We contemplate a naked bones system that sends uncooked instructions to the system to be adequate for our personal use, however could discover that after we return to it years later, we do not know methods to use it anymore. To keep away from this type of drawback, Korevec developed a smartphone app that can be utilized to program the show. This makes it straightforward to create new art work, change photographs, and even begin an animation.

This information will make it a lot simpler to get began with flip-discs, nevertheless, it’s nonetheless an costly interest to tackle. So except you wish to spend two to a few thousand {dollars} in your new show, you is likely to be higher off sticking with an LCD. However perhaps you could possibly simulate the looks of the spinning mechanical pixels, and even the sounds, if you happen to go that route? When you give it a attempt, make sure to put up the outcomes on Hackster. We’d like to see it!
