GaN MPPT Controller And Optimizer Reference Design

Ideally suited for small to medium-power purposes, it options GaN FET know-how, delivering as much as 98.8% effectivity, a compact type issue, and strong protections.

A Most Energy Level Monitoring (MPPT) photo voltaic cost controller is a vital element for environment friendly photo voltaic power administration. This reference design caters to small and medium-power photo voltaic charger purposes, making it excellent for photo voltaic cost controllers and energy optimizers utilized in residential, industrial, or moveable photo voltaic techniques. Focused at designers and engineers, it affords a flexible answer able to working with 15V to 60V photo voltaic panel modules and supporting 12V or 24V batteries. With a compact type issue and excessive effectivity, this design is appropriate for techniques requiring as much as 16A output present.

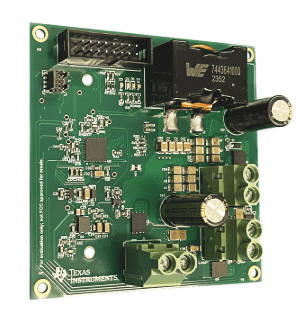

The reference design TIDA-010042 by Texas Devices (TI) makes use of a buck converter to step down the photo voltaic panel voltage to the battery voltage. It encompasses a half-bridge TI gallium nitride (GaN) energy stage with built-in drivers managed by an MSPM0G1506 microcontroller unit (MCU). The MCU employs the perturb-and-observe algorithm to dynamically determine the utmost energy level, guaranteeing optimum power extraction from the photo voltaic panels. The design achieves spectacular effectivity ranges of 98.5% for 12V techniques and 98.8% for 24V techniques, because of the GaN FETs with low RDS(on), diminished switching losses, and 0 reverse restoration cost. The excessive switching frequency of as much as 250 kHz allows using compact passive elements, decreasing general design dimension.

– Commercial –

This MPPT photo voltaic cost controller incorporates a number of protections to reinforce reliability, together with reverse battery polarity, overcharge, over-discharge, and system overtemperature safety. Moreover, the controller contains programmable alarms and indications, together with surge and electrostatic discharge (ESD) safety, making it strong for numerous environmental situations. Its small board dimension (83mm × 82mm × 26mm) additional simplifies integration into compact techniques.

Key options of this design embrace a large enter voltage vary (15V to 60V), versatile compatibility with 12V and 24V batteries, and assist for top output currents as much as 16A. Functions vary from photo voltaic cost controllers for residential or off-grid techniques to solar energy optimizers that maximize power harvesting in small and medium-scale setups.

– Commercial –

TI has totally examined this reference design, guaranteeing its reliability and efficiency. The design package deal features a invoice of supplies (BOM), schematics, meeting drawings, and printed circuit board (PCB) layouts, together with extra sources obtainable on the TI web site. This complete assist allows fast adoption and customization, making it a useful useful resource for engineers and designers within the photo voltaic power sector. To discover additional particulars, click on right here.
