As soon as a fixture in almost each house, landline telephones are quickly disappearing. And with them, so is the supporting infrastructure — market analysis agency Gartner estimates that solely about 5 p.c of the as soon as nice landline infrastructure will nonetheless be in operation by 2030. In fact this has been many years within the making, with landline service availability frequently shrinking over time as cell telephones changed them available in the market. Now this fading expertise is lastly about to take its final gasp.
Fanatics don’t let outdated applied sciences die fairly so simply, nevertheless. Whether or not as a result of nostalgia for a time previous, or the chance to study from a less complicated, simpler to know expertise, {hardware} hackers like to breathe new life into outdated tech. Hackaday.io consumer Steve Rodgers is numbered amongst this group of dedicated electronics fanatics, and not too long ago determined to construct a landline phone change, as a result of who doesn’t want their very own landline infrastructure nowadays?

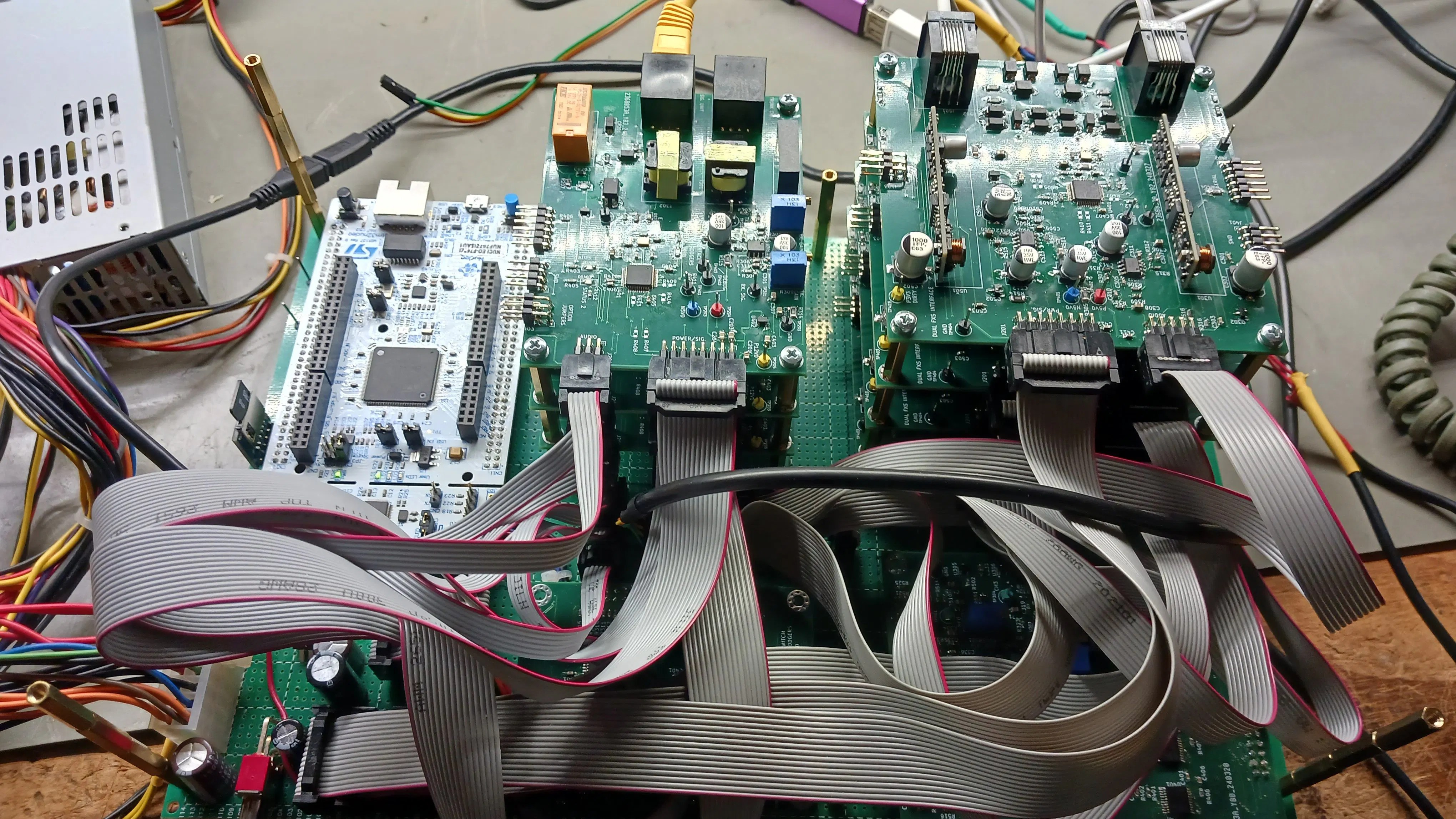

Testing the system with some classic telephones (📷: Steve Rodgers)
Particularly, Rodgers constructed what he calls the Mockingbird Phone Trade. It’s designed to imitate the Western Electrical Quantity 5 Crossbar Switching System, which has been in use within the public switched phone community for the reason that Forties. This isn’t simply outdated {hardware} that has been dusted off and repaired — Mockingbird is a modern-day implementation that emulates the unique {hardware}. As configured, the system helps eight subscriber strains and three trunk strains.
By means of background, a phone switching system is the {hardware} that makes a bodily connection between the caller and the receiver. A phone change is supplied with these switches to service calls in a neighborhood space. Trunk strains are particular connections that hyperlink native exchanges and allow long-distance communication between them.
To breed the capabilities of an change, Rodgers designed and constructed a set of 4 customized twin line playing cards, with every card supporting two subscriber strains. Moreover, a set of three trunk playing cards had been designed to facilitate communication between the road playing cards, as in the event that they had been geographically separated. Each the road and trunk playing cards are geared up with STM32F103C8T6 microcontrollers. The change is managed by the STM32F767ZI Nucleo improvement board, which was programmed with the STM32CubeMX improvement atmosphere in Eclipse. This improvement board communicates with the road and trunk playing cards designed by Rodgers.
The Mockingbird Phone Trade additionally has a customized tone plant and DTMF decoder card. The tone plant generates acquainted sounds just like the dial tone and busy sign. The DTMF decoder is used to detect and decode the tones generated by urgent the keys on a cellphone’s keypad.
Supply code has been launched on GitHub, and Rodgers notes that extra data is approaching the customized boards that had been designed for the undertaking. So, if you wish to experiment with landline cellphone applied sciences for enjoyable or training, make sure to try the undertaking write-up. Additionally check out the video which exhibits calls being positioned via the Mockingbird Phone Trade.
