Energy Over Ethernet Reference Design For Industrial Gateways

This versatile and built-in resolution facilitates the event of linked, clever units, contributing to the development of IoT expertise in a number of sectors.

Energy Over Ethernet (PoE) is a transformative expertise for industrial gateways, providing vital benefits when it comes to effectivity, cost-effectiveness, and reliability. By integrating knowledge and energy transmission over a single Ethernet cable, PoE simplifies set up and reduces the necessity for added electrical infrastructure, making it significantly helpful in industrial environments. This streamlined method not solely minimizes wiring complexity and related prices but in addition enhances flexibility in gadget placement, guaranteeing optimum community design and scalability.

This reference design TIDM-1018 by Texas Devices,  seamlessly integrates the corporate’s Energy over Ethernet (PoE) expertise with the high-performance SimpleLink MSP432E4 Ethernet microcontroller (MCU), enabling clients to develop strong functions for the Web of Issues (IoT) on a compact board. By combining the flexibility to derive energy from current community cabling with superior knowledge processing and cloud communication capabilities, this design considerably enhances the worth of finish functions.This reference design has diverse functions, together with HVAC gateways, HVAC system controllers, safety gateways, and situation monitoring gateways.

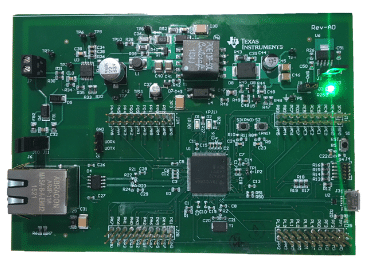

The design contains a small kind issue board measuring 4.95 inches by 3.45 inches, outfitted with the MSP432E401Y MCU, which incorporates an built-in Ethernet PHY and MAC. This integration offers a cheap invoice of supplies (BOM) with an onboard RJ45 connector, transformer, and diode bridge for the PoE energy stage. The board additionally features a 7-W remoted output from a fly-back converter, with provisions for each 5-V and three.3-V output energy rails, guaranteeing versatile energy provide choices. It presents an non-compulsory energy header to produce exterior DC energy from an uninterruptible energy provide (UPS) in case of community energy failure. To facilitate fast prototyping and growth, the board options twin BoosterPack™ plug-in module headers, suitable with a variety of BoosterPacks from TI and third-party distributors. Builders can leverage the SimpleLink MSP432E4 Software program Growth Package (SDK), with examples that may be run with out modifications for analysis functions.

The MSP432E401Y is a 120-MHz high-performance MCU boasting 1MB of on-chip flash and 256KB of on-chip SRAM. It additionally contains an built-in Ethernet MAC + PHY for linked functions and options cryptographic modules for AES, DES, and SHA, supporting encryption, decryption, and authentication. The TPS23753A combines a PoE powered gadget (PD) interface with a current-mode DC-DC controller, optimized for remoted converter designs. This implementation helps the IEEE 802.3at customary as a 13-W, sort 1 PD. The TPD2E2U06 is a dual-channel, low-capacitance TVS diode designed for ESD safety, providing ±25-kV contact and ±30-kV air-gap ESD safety per the IEC 61000-4-2 customary. Moreover, the TLV431 gadget is a low-voltage, 3-terminal adjustable voltage reference with specified thermal stability over industrial and industrial temperature ranges. Its output voltage might be adjusted between VREF (1.24 V) and 6 V utilizing two exterior resistors, working from a decrease voltage than the generally used TL431 and TL1431 shunt-regulator references.

– Commercial –

TI has examined this reference design. It comes with a invoice of supplies (BOM), schematics, meeting drawing, printed circuit board (PCB) structure, and so on. Yow will discover extra knowledge in regards to the reference design on the corporate’s web site. To learn extra about this reference design, click on right here.
