CRAMming a CPU Into RAM

Whereas computing applied sciences have superior tremendously over the previous a number of a long time, the identical primary structure — referred to as the von Neumann structure — that was in place close to the start of the digital pc revolution continues to be utilized in most pc techniques in the present day. Computer systems that implement a von Neumann structure have separate {hardware} models that deal with processing and reminiscence features, with a shared bus that connects them. The longevity of this design proves that it has served us very properly over time, however as we push additional into the bleeding fringe of machine studying, it’s starting to indicate its age.

The issue is that as processors and reminiscence models get quicker and quicker, and ever extra information must be shuttled between them, the connecting information bus turns into a significant bottleneck. This considerably slows information processing, and it additionally considerably contributes to the huge energy consumption that’s related to coaching giant machine studying fashions. A bunch headed up by researchers on the College of Minnesota realized that one of the simplest ways to take care of this case can be to mix processing and reminiscence into the identical {hardware} unit, such that information doesn’t should be regularly transferred between them.

This isn’t a brand new concept, nevertheless it has taken expertise fairly a while to mature to the purpose {that a} sensible implementation of this structure might be created. Members of this group pioneered the event of Magnetic Tunnel Junction (MTJ) applied sciences, that are utilized in some storage and sensing {hardware} in the present day. MTJs can function at larger speeds than the transistors that conventionally energy these units, and so they additionally eat far much less vitality.

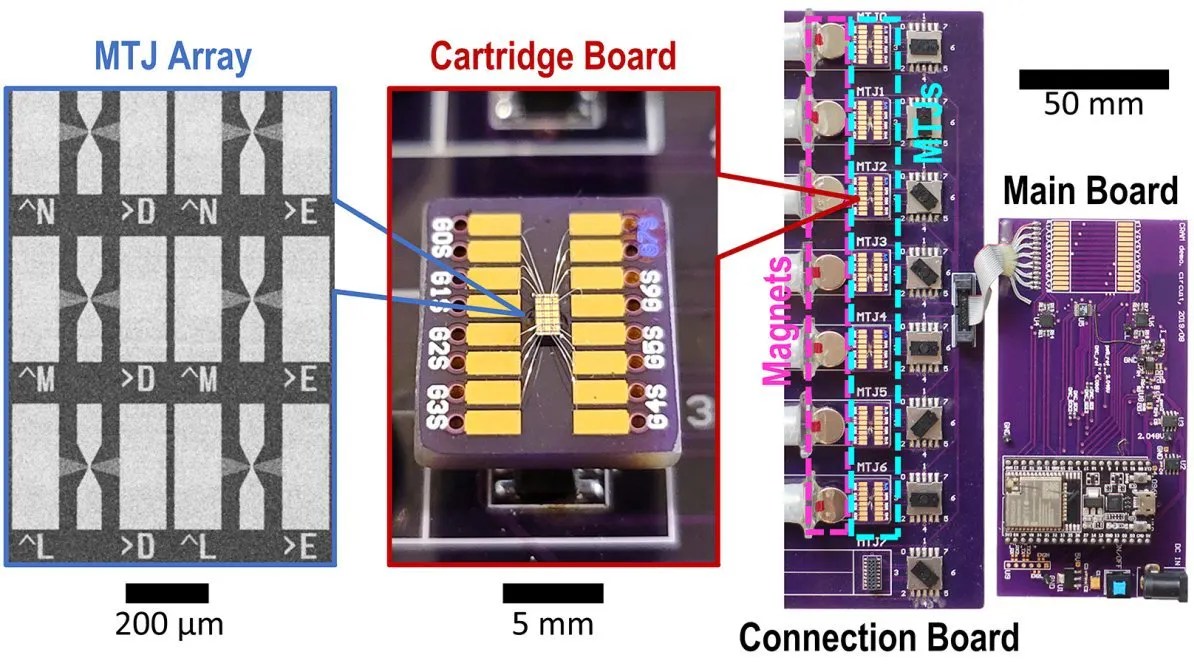

Of their newest analysis, the group leveraged this previous work to develop what they name computational random-access reminiscence (CRAM). Because the title suggests, CRAM is able to performing as each reminiscence and a processor, multi function unit.

To ensure that MTJs for use for extra than simply information storage, the CRAM structure required some further elements. To help in-memory logic operations, the reminiscence cells incorporate further transistors and logic strains. A typical CRAM cell has a 2T1M (2 transistors, 1 MTJ) configuration. This setup features a second transistor, a logic line, and a logic bit line along with the usual 1T1M (1 transistor, 1 MTJ) configuration used for reminiscence operations.

Throughout logic operations, particular transistors and features are manipulated in order that a number of MTJs can quickly connect with a shared logic line. Voltage pulses are utilized to the strains connecting the enter MTJs, whereas the output MTJ is grounded. The resistance of the enter MTJs impacts the present flowing via the output MTJ, figuring out its state change. This course of makes use of the voltage-controlled logic precept, the place the logic operation is carried out based mostly on the thresholding impact and tunneling magnetoresistance impact of the MTJs. This association makes it doable to reconfigure logical operations as wanted.

Experiments confirmed that CRAM was able to lowering vitality consumption by an element of greater than 1,000 compared with current applied sciences. That might be excellent news for neural networks, picture processing, edge computing, bioinformatics, sign processing, and different functions that this in-memory computation system is very well-suited for.
