Capacitorless Filter Might Reform Energy Electronics

– Commercial –

A capacitorless solid-state filter developed by the analysis crew of Purdue College for DC-AC converters affords higher effectivity and reliability.

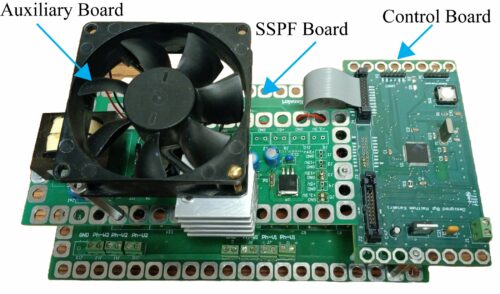

An modern capacitorless solid-state energy filter (SSPF) has been developed by a analysis crew led by Dr. Haitham Kanakri and Dr. Euzeli Dos Santos, analysis assistant, Purdue College, USA geared toward enhancing single-phase DC-AC converters. This modern SSPF design eliminates the necessity for conventional LC filters and dc-link capacitors through the use of a high-frequency planar transformer that operates at 30kHz, permitting the H-bridge converter to generate a sinusoidal output voltage. The analysis affords a promising resolution for energy electronics engineers and producers targeted on creating extra compact, environment friendly techniques for a variety of functions, from renewable power to automotive sectors

Preliminary testing and theoretical evaluation, carried out on a 60Hz, 120V system, yielded a complete harmonic distortion of simply 1.29%, assembly the stringent IEEE 519 requirements. By eradicating the necessity for 3 main elements—LC filters, dc-link capacitors, and sophisticated voltage harmonic filtering—the SSPF considerably simplifies design and reduces materials prices, making it a beneficial development for energy electronics producers and system integrators targeted on optimizing each area and efficiency.

– Commercial –

The analysis additionally highlights the SSPF’s potential for numerous energy converter functions, together with in electrical autos (EVs) and renewable power techniques. Aiming to increase the SSPF’s advantages throughout different converter topologies, the crew is exploring novel methods to additional improve energy density and effectivity. By using naturally occurring stray capacitance inside converter circuits, the researchers anticipate substantial enhancements in compactness and operational effectivity with out the added bulk of exterior capacitors.

Specifically, one space of focus is on utilizing these rules to cut back the dimensions of EV chargers, a improvement that would help the miniaturization and scalability of charging techniques. The crew’s exploration features a promising new materials, calcium copper titanate (CCTO), which may improve stray capacitance inside converters. The adoption of CCTO may allow capacitor-free designs in DC-DC converters, furthering developments in sustainable and dependable energy electronics.

The event of capacitorless SSPF know-how represents a possible leap in energy electronics, providing streamlined techniques with fewer elements and improved performance. This pioneering work has the potential to pave the best way for extra environment friendly energy techniques throughout industries, lowering materials reliance whereas supporting broader targets of sustainability and innovation.
