An Excel-lent Microcode Compiler – Hackster.io

The trail to turning into a educated electronics hobbyist will be lengthy and arduous, however it’s also very rewarding. It at all times begins out innocently sufficient, maybe with an Arduino or Raspberry Pi improvement board, just a few resistors, an LED, and a little bit of Python coding. After studying about ahead voltages, Ohm’s legislation, and GPIO pins, the newbie shall be rewarded with their first blinking lights. The preliminary pleasure this stirs up will inevitably result in curiosity — however how does all of it work? — and off down the rabbit gap they go!

For a lot of, that journey finally leads them to construct a pc, in all probability based mostly on an older processor like a 6502 or Z80 for simplicity. Designing and constructing the complicated circuit to make a practical laptop is a tremendously beneficial studying expertise. However for a comparatively small variety of {hardware} hackers, that’s not sufficient to fulfill their curiosity. There may be nonetheless the query of what precisely is occurring inside these built-in circuits — particularly the CPU.

Most individuals are content material to cease earlier than that, and think about machine code or meeting language to be the bottom stage of laptop engineering. In fact that’s not true, nonetheless. This view ignores every part that really occurs contained in the CPU. So courageous souls, like Bob Alexander, got down to construct their very own CPUs to achieve extra understanding.

As you may anticipate, that is some fairly difficult work. Particularly, CPU design will convey you face-to-face with microcode. Think about an meeting language instruction like ADD. Even when we have no idea all the particulars, we will simply acknowledge that there should be lots taking place contained in the CPU to hold out this easy instruction. Information could should be loaded from reminiscence into registers, and naturally that information should cross via specialised addition circuits, earlier than the consequence winds up in one other register. That’s the place microcode is available in — it specifies in nice element precisely what must occur to hold out an instruction.

Usually this microcode is saved in ROM chips. Various inputs, just like the opcode, the system clock, and quite a lot of processor flags are provided to the handle pins of those chips. Saved on the specified handle is a price, which shall be written to the info pins, that’s used to change elements contained in the CPU on and off to regulate the movement of knowledge and carry out the requested computation.

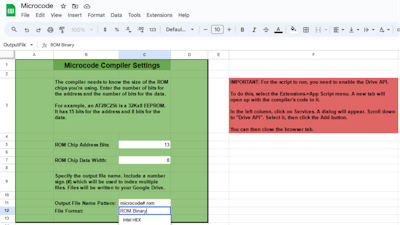

So to construct a CPU, one must outline and implement the microcode directions. Alexander got here up with a intelligent hack to make this course of only a bit much less painful. By making a microcode compiler inside a Google Sheet, Alexander made it attainable to outline the inputs and outputs, then generate binaries that may be written to ROM chips.

Not solely does this make the event course of easier and fewer susceptible to error, but it surely additionally makes for a pleasant piece of documentation that may be referenced later. Should you occur to be going via the method of designing your individual CPU, it might be nicely price looking at this spreadsheet-based microcode compiler.
