Researchers from the College of Science and Know-how of China, the College of the Chinese language Academy of Sciences, and the CAS Shanghai Institute of Technical Physics have give you a single-photon lidar system that, they are saying, can ship high-resolution 3D pictures with a low-power laser — making for a smaller and lighter sensor system for drones and extra.
“Utilizing single-photon lidar know-how on resource-limited drones or satellites requires shrinking your entire system and decreasing its vitality consumption,” explains Feihu Xu of the issue the group got down to clear up.
“We had been capable of incorporate latest know-how developments right into a system that, compared to different state-of-the-art airborne lidar methods, employs the bottom laser energy and the smallest optical aperture whereas nonetheless sustaining good efficiency when it comes to detection vary and imaging decision.”
A extra compact lidar sensor system (a), which makes use of low-powered lasers and SPAD detectors (c), may make 3D aerial mapping from drones and satellites extra accessible. (📷: Hong et al)
Like rival methods, the group’s lidar is a light-based various to radar for figuring out the gap between the sensor and an object. The place it differs, although, is that the transmitted laser gentle is detected by ultra-sensitive single-photon avalanche diode (SPAD) arrays — which means they’re able to working with a a lot lower-power laser than their rivals and utilizing a extra compact 47mm (round 1.85″) aperture for the receiving lens. Coupled with sub-pixel scanning and a novel 3D deconvolution algorithm, the sensor can ship high-resolution daytime 3D scans from drones, airplanes, and even satellites.
“A key a part of the brand new system is the particular scanning mirrors that carry out steady tremendous scanning, capturing sub-pixel info of the bottom targets,” Xu explains. “Additionally, a brand new photon-efficient computational algorithm extracts this sub-pixel info from a small variety of uncooked photon detections, enabling the reconstruction of super-resolution 3D pictures regardless of the challenges posed by weak alerts and robust photo voltaic noise.”
In testing, the prototype lidar system delivered a 15cm scanning decision concentrating on objects at a 1.5km distance (round 5.9″ at one mile) — which improved to 6cm (round 2.4″) as soon as the sub-pixel scanning and deconvolution methods had been activated.

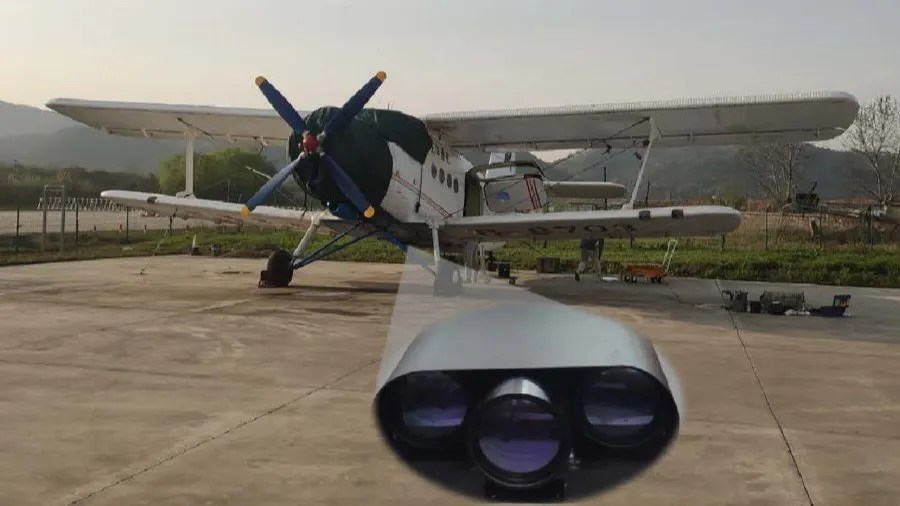

The group examined the sensor on a small plane, delivering a 6cm decision at a 1.5km vary. (📷: Hong et al)
“Finally, our work has the potential to boost our understanding of the world round us and contribute to a extra sustainable and knowledgeable future for all,” Xu claims.
“For instance, our system might be deployed on drones or small satellites to watch adjustments in forest landscapes, equivalent to deforestation or different impacts on forest well being. It may be used after earthquakes to generate 3D terrain maps that might assist assess the extent of injury and information rescue groups, probably saving lives.”
The group’s work has been revealed below open-access phrases within the journal Optica.
