56G Retimer MCB Reference Design

This reference design successfully makes use of the DS560DF410 retimer in a flexible, high-performance MCB appropriate for varied high-speed knowledge communication purposes.

The 56G PAM-4 retimer DS560DF410 is essential for reinforcing high-speed knowledge communication programs’ efficiency and reliability. It equalizes and extends high-speed alerts in environments with compromised sign integrity attributable to lengthy distances, loss, and crosstalk. Independently locking to image charges (PAM4 and NRZ) from 19.6 to twenty-eight.9GBd or any supported sub-rate, the DS560DF410 ensures sturdy sign transmission, making it important for knowledge heart switches, campus and department switches, edge routers, and core routers.

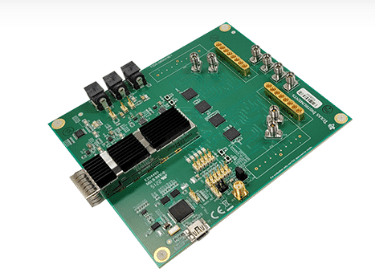

This reference design TIDA-060043 by Texas devices illustrates the implementation of the 56G PAM-4 retimer DS560DF410 for equalizing high-speed alerts in lively electrical cable purposes. The design is a Module Compliance Board (MCB), which routes alerts from a QSFP-DD connector by means of a retimer to SMA and MXP connectors in each ingress and egress instructions.

The design options eight unbiased channels for every path, making certain complete sign administration. It’s suitable with QSFP-DD cables for each ingress and egress, and in addition helps host-side Huber-Suhner and SMA compatibility in each instructions. Configurability is achieved by means of electrically erasable programmable read-only reminiscence (EEPROM) or USB-to-I2C communication, offering versatile management choices. Headers for all related debug and configuration pin controls and interrupts are included, enhancing troubleshooting and customization capabilities. Moreover, the design contains onboard energy regulation for changing 3.3V to 1.8V and 1.2V domains, making certain steady energy provide for the retimers.

The first purposes of this design embody knowledge heart switches, campus and department switches, edge routers, and core routers. MXP connectors, generally utilized in high-speed check and analysis gear, had been chosen for interfacing with this MCB attributable to their prevalence in TI’s 25G/28G and 56G Ethernet sign conditioning machine EVMs.

– Commercial –

Excessive-speed hint structure is important in high-speed design. On this MCB design, structure suggestions from the DS560DF410 56Gbps Multi-Charge 4-Channel Retimer with Crosspoint knowledge sheet had been meticulously adopted to make sure optimum efficiency. The board is powered with 3.3V, whereas the DS560DF410 retimers function on the 1.8V and 1.2V domains. The three.3V to 1.8V conversion is dealt with by the TPS7A52, and the three.3V to 1.2V conversion is managed by the TPS62867, in keeping with the DS560DF410EVM design.

The DS560DF410 is a four-channel multi-rate retimer with built-in sign conditioning. This machine enhances the attain and robustness of lengthy, lossy, and crosstalk-impaired high-speed serial hyperlinks. Every channel within the DS560DF410 independently locks to image charges (PAM4 and NRZ) in a steady vary from 19.6 to twenty-eight.9GBd or to any supported sub-rate.

The TPS62865 and TPS62867 are high-frequency synchronous step-down converters, offering an environment friendly, versatile, and excessive power-density design. The TPS7A52 is a low-noise (4.4 µVRMS), ultra-low dropout linear regulator (LDO) able to sourcing 2A with a most dropout of solely 65mV. The machine’s output voltage is adjustable from 0.8V to five.2V utilizing an exterior resistor divider, providing exact voltage management.

– Commercial –

TI has examined this reference design. It comes with a invoice of supplies (BOM), schematics, and many others. The extra knowledge concerning the reference design on the corporate’s web site. To learn extra about this reference design, click on right here.
