Technological advances are making autonomous aerial automobiles helpful for extra purposes on a regular basis. However probably the most sensible use circumstances nonetheless contain videography, mapping, and different duties that don’t require a considerable payload to be carried. The easy truth of the matter is that immediately’s vitality storage techniques can not maintain a drone in flight for lengthy durations beneath a heavy load. And that implies that long-promised companies like drone-based package deal supply could also be little greater than hype for a while to return.

There are some methods round this downside. Probably the most simple is to construct bigger drones — nonetheless, these aerial automobiles are cumbersome and costly, and crucially, they are often unsafe to function in populated areas. Different choices have additionally been explored, like implementing reconfigurable multirotor designs or inventive placement of the payload, however such options are inclined to make the automobile unstable in flight, which is once more unacceptable from a security standpoint.

A crew of engineers at Macquarie College in Australia got here up with a totally different concept that would assist drones to elevate heavy hundreds, whereas remaining protected, secure, and comparatively cheap. This concept is centered on teamwork. A number of light-weight drones cooperate to elevate a weight that none may elevate individually. This isn’t a wholly new concept — present techniques have a tendency to hold the payload beneath the drones, nonetheless, which ends up in a pendulum swing induced by downwash from the rotors. That, in flip, leads to instability.

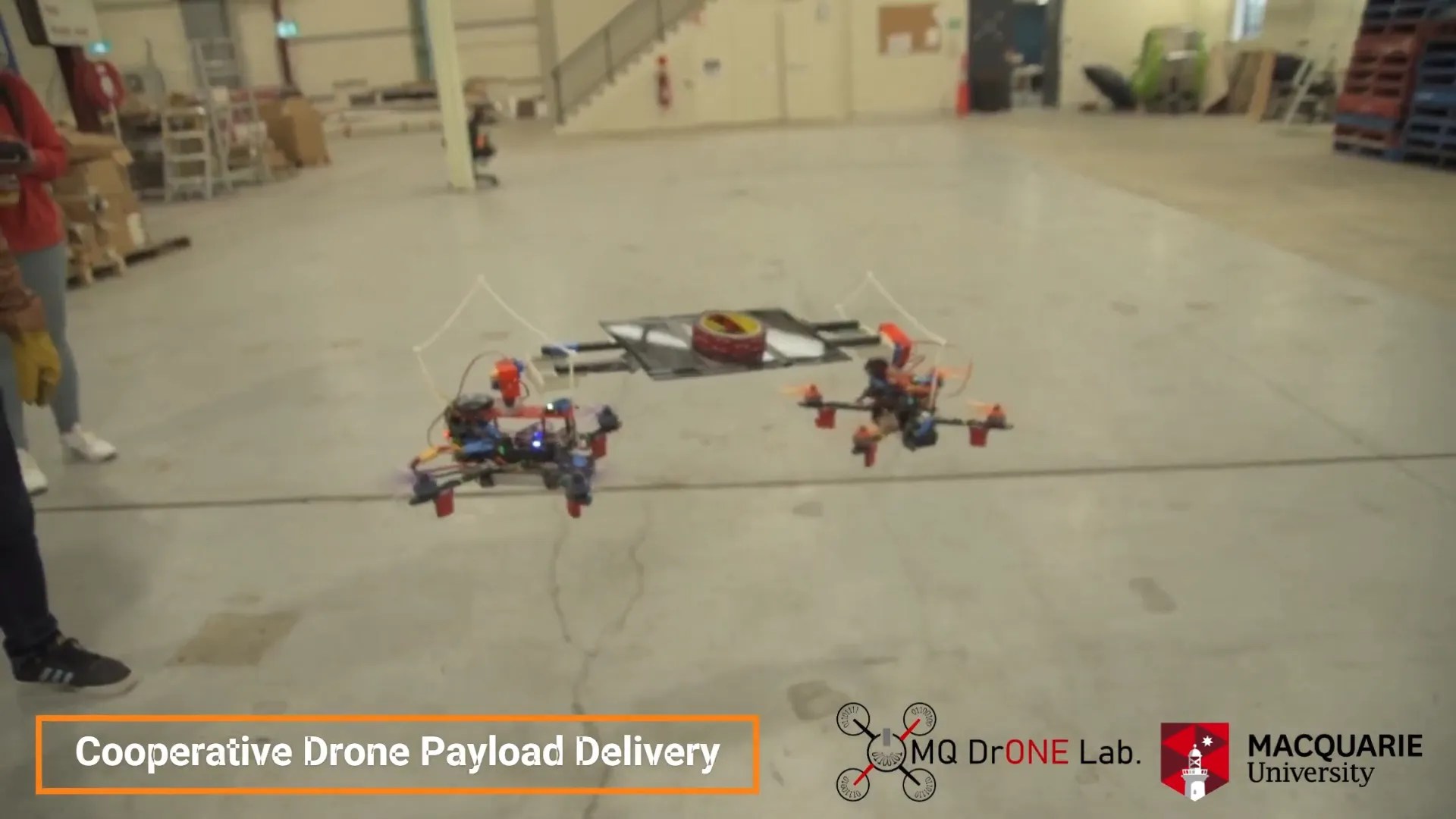

In distinction, the researchers’ strategy locations the payload on a tray that sits above the drones, with every supplying elevate to get it airborne. This methodology eliminates the pendulum swing, but it surely does introduce a brand new concern, particularly, that the tray has to stay balanced between impartial aerial automobiles.

Working with a two drone setup, the crew designed what they name a Self Balancing Tray (SBT) to take care of this situation. The SBT connects to every drone through magnetic attachment factors. There are additionally sensors embedded inside the tray to watch its stability. Measurements from these sensors are forwarded to an onboard NVIDIA Jetson Nano single board pc, which calculates any changes that must be made to get the SBT right into a correctly balanced state. Changes are then made through 3-degree finish effector actuators that interface every drone to the tray.

Subject assessments of the SBT with a pair of drones confirmed that the actuation system was fairly correct, with only a 1.6 p.c deviation from the goal being seen on common. This accuracy enabled the cooperative drones to hold their payload at a pace of as much as 4 meters per second, which may come in useful in real-world package deal supply purposes. When perturbed, the SBT may get the load re-balanced in simply over 2 seconds, which proved to be efficient in retaining the automobiles secure in flight.

To this point, the elevate system has largely been examined indoors, so it stays to be seen how components like wind gusts would possibly affect automobile stability. However the preliminary outcomes counsel that the SBT is a know-how to maintain our eyes on sooner or later.
