Shrinking drones right down to tiny proportions permits them to go the place no different drone can go. Referred to as micro aerial automobiles (MAVs), these diminutive drones are helpful for a variety of essential functions, equivalent to inspecting the insides of pipes and gasoline tanks, or working reconnaissance operations the place stealth is a key consideration. However right now’s MAV know-how is sort of restricted with respect to vary and flight time. While you shrink an aerial car right down to the scale of an insect or chook, engineering challenges abound.

Conventional MAVs depend on DC motors, that are pushed by electromagnets, for propulsion. Because the effectivity of those motors quickly decreases with shrinking sizes, and light-weight aerial automobiles can solely carry very small quantities of vitality to energy them, they can’t keep airborne for lengthy. Typical flight instances for a MAV could also be just some minutes. This makes them fully impractical for long-distance operations.

Researchers have not too long ago developed a brand new kind of MAV, known as CoulombFly, that may keep aloft indefinitely — properly, so long as the solar is shining, anyway. As you’ve gotten in all probability guessed, CoulombFly is powered by photo voltaic vitality. Nevertheless, that alone wouldn’t be sufficient to maintain the drone within the air. On account of effectivity points with tiny DC motors, the staff additionally wanted to develop a novel propulsion system to benefit from the vitality captured by the restricted floor space of the car.

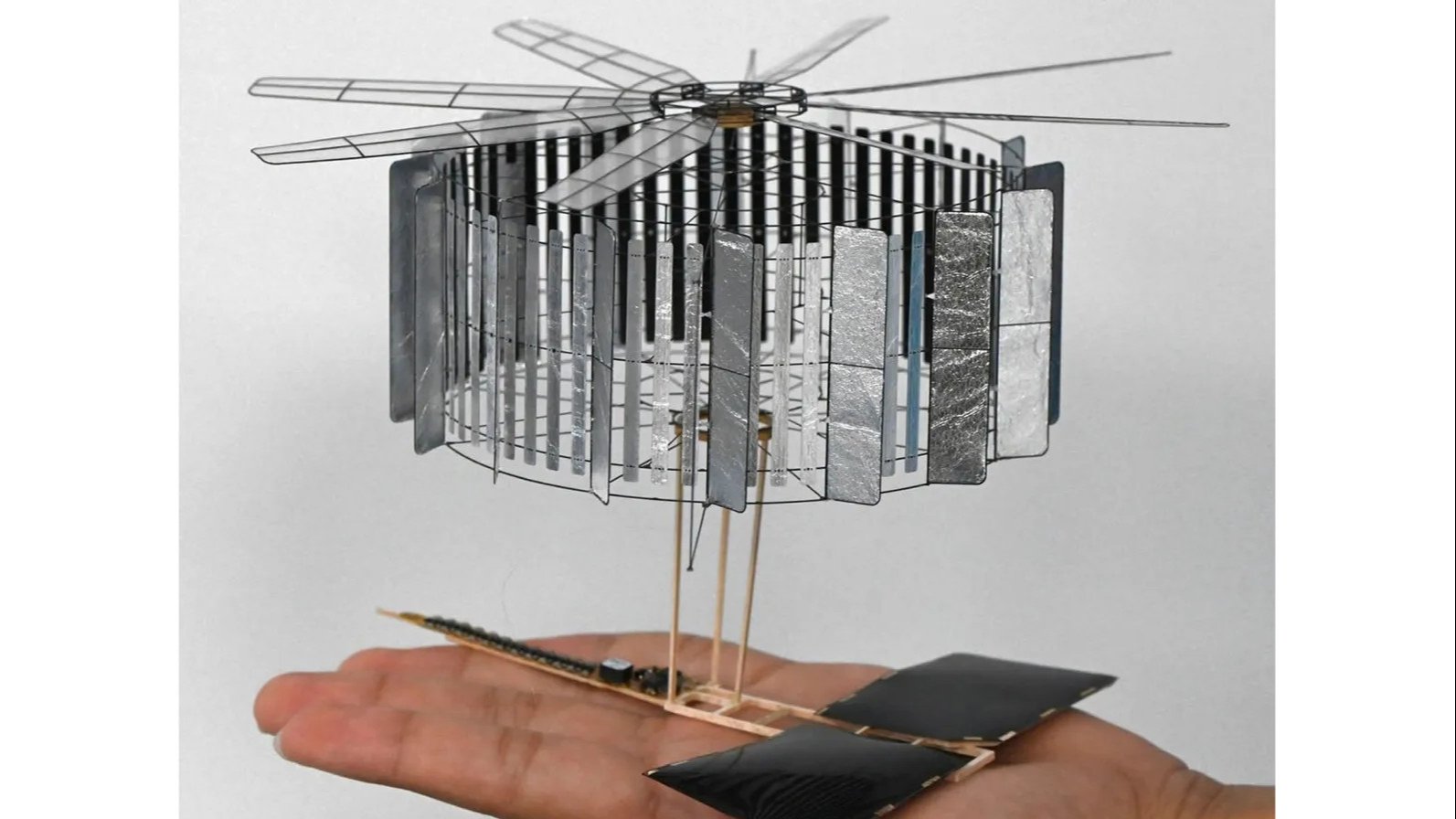

The car weighs in at 4.21 grams and has a wingspan of 20 centimeters, making it about 10 instances smaller and 600 instances lighter than current sunlight-powered plane. The body of CoulombFly is fabricated from light-weight wooden that incorporates the management system and photo voltaic cells. Positioned above the decrease airframe is a pair of rings that make up the electrostatic motor. An inside ring consists of 64 sheets of carbon fiber coated with aluminum foil. The outer ring has eight pairs of optimistic and detrimental electrode plates, alternating in polarity. These electrode plates even have aluminum brushes that make contact with the inside ring’s sheets as they spin.

Electrical vitality from the photo voltaic cells costs the electrodes of the outer ring, inflicting them to generate an electrical subject. This exerts a power on the sheets of the inside ring, inflicting them to spin. A rotor is hooked up to this inside ring, which provides carry to the car. The motor was measured as producing 5.8 grams of carry, which leaves 1.59 grams of accessible payload capability. That’s not a lot, however it’s adequate for a lot of trendy sensors or cameras.

In a laboratory setting, CoulombFly was proven to be able to sustained flight for a interval of an hour with no degradation of efficiency. In principle, this MAV may keep aloft indefinitely so long as the solar is shining. After all it isn’t at all times shining, nevertheless, however the staff believes there may be simply sufficient payload capability accessible to incorporate a small rechargeable battery that might hold the car in flight, doubtlessly even for twenty-four hours.

Wanting forward, the researchers plan to experiment with utilizing their know-how in each fixed-wing automobiles and quadcopters. Doing so may allow the automobiles to hold much more weight, which might make them helpful for a lot of extra functions.
