Many digital parts at the moment are so cheap that they’re thought of to be disposable. However simply because it is smart economically to throw away completely good components doesn’t essentially imply that we must always accomplish that. It is a consideration that usually comes up in design prototyping, the place new variations of units are quickly produced to check new capabilities. The actual fact of the matter is that trendy SMD parts take loads of time to desolder, so the trouble that goes into salvaging a component could merely not be price it.

Again within the days when through-hole parts have been usually utilized in electronics, one may prototype with a breadboard and simply reuse parts by merely lifting them off of the board after they have been completed. With out such a system for SMD parts, a lot of them are more likely to wind up as e-waste. On condition that United Nations estimates present that over 60 million tons of e-waste are already being generated every year, it is a fairly large drawback. E-waste, which accommodates numerous poisonous chemical substances, is actually not one thing we would like filling up our landfills.

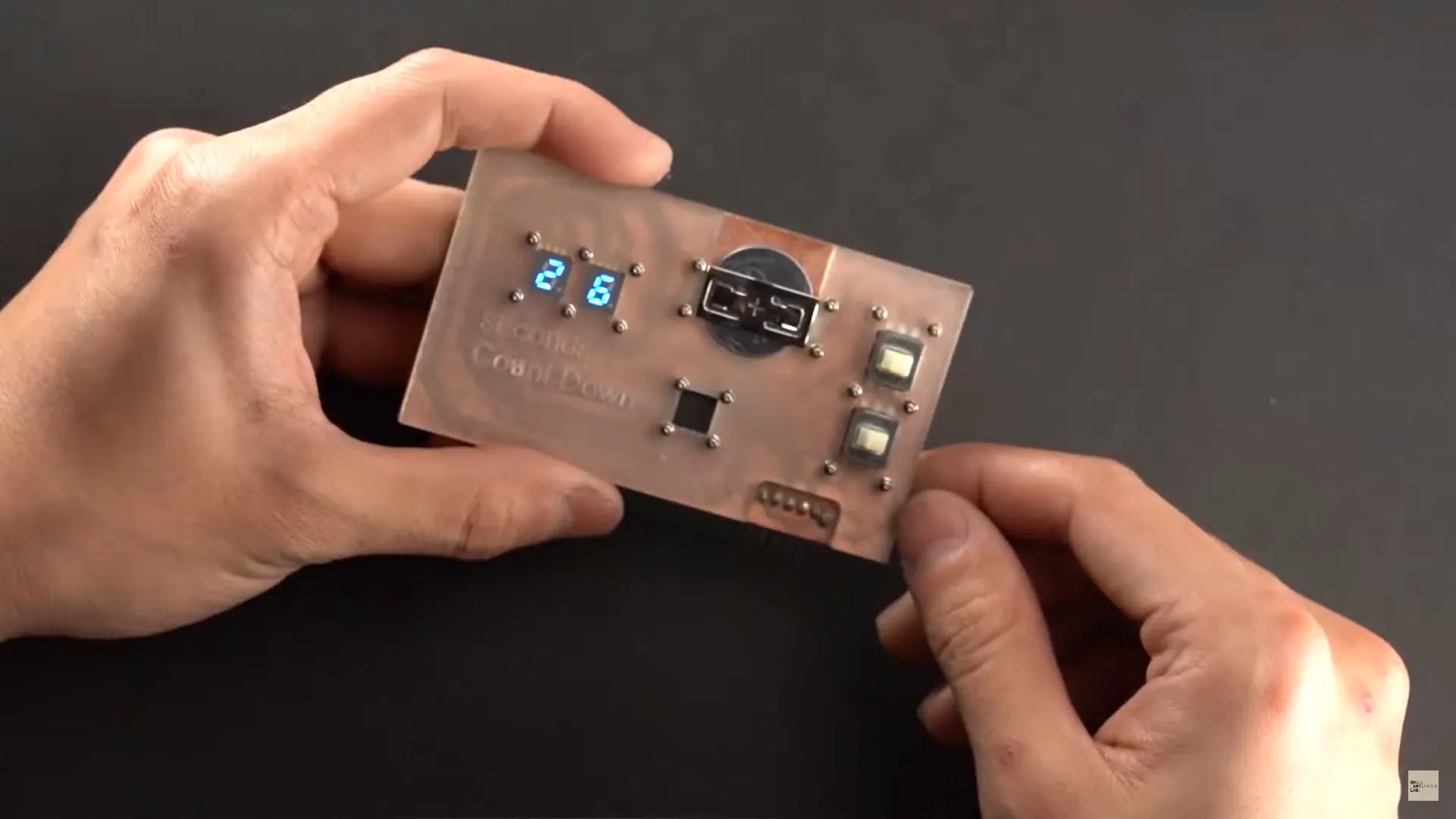

Some artistic researchers on the College of Maryland, School Park have provide you with one thing like a breadboard for the fashionable age. Their system, referred to as SolderlessPCB, makes it potential to connect SMD parts to a PCB — because the identify implies — with out soldering. SolderlessPCB makes use of customized housings that securely connect parts to a PCB utilizing bolts. The method will be reversed, and the pristine parts will be recovered, by merely loosening the bolts and eradicating the housing.

The strategy entails fabricating a customized, 3D-printed housing that aligns with a PCB design. The housing accommodates numerous cavities, one for every element that’s to be mated with the board. The parts may vary from easy two-terminal units like resistors or capacitors to any variety of built-in circuit packages and even non-standard parts like battery holders. Every of those element kinds presents distinctive challenges in making a superb electrical connection, which the workforce handled in a wide range of methods. Two-terminal parts, for instance, are inclined to have a point of variance of their top. For these circumstances, versatile tabs have been constructed into the cavities to make sure that enough strain is utilized to the gadget to beat these variations in tolerance and make good contact with the PCB.

To streamline the method of designing the housings, a element library was created for Autodesk Fusion 360. A tough define of the steps concerned in utilizing this library and creating each the housing and PCB is included on the workforce’s GitHub repository. When it comes time to print the housing, observe that customary plastics or resins is not going to be enough because of the versatile tabs that it accommodates. The researchers discovered {that a} 3:2 combination of a tricky UV resin and a versatile UV resin match the invoice properly, nevertheless.

A sequence {of electrical} and mechanical checks have been carried out to evaluate the reliability of SolderlessPCB. It was discovered to take care of good electrical connections after being dropped a number of instances, indicating that the system is well-suited to be used in prototyping. There’s some work that must be performed to get going with SolderlessPCB, nevertheless, so it could not make sense when just some design iterations will likely be wanted. However the place many variations will likely be examined, SolderlessPCB may save money and time, and likewise hold e-waste out of the landfill.
