When most individuals take into consideration a fancy digital circuit, their thoughts first turns to the normal FR4-based printed circuit boards (PCBs) that they’re normally laid out on. This form of PCB is utilized in practically all digital merchandise, in spite of everything. However whereas these boards have served us very effectively over the many years, they aren’t excellent for each state of affairs. That is very true when the circuit must be packed into a good space. Normal PCBs lay out circuits in two-dimensional sheets, which prevents them from totally making the most of the accessible three-dimensional quantity contained in the case of an digital machine.

A group led by researchers on the Nationwide College of Singapore has simply unveiled a brand new expertise that would make it attainable to fabricate complicated digital circuits of any form sooner or later. Their innovation is named CHARM3D (conductive high-aspect-ratio metallic 3D printing), and it permits for the fabrication of three-dimensional, self-healing circuits. This system can produce free-standing conductive metallic buildings by way of 3D printing, and it doesn’t require any help buildings or different fiddling to make it work.

Beforehand, these kinds of buildings would have been printed utilizing a way known as direct ink writing, by which viscous conductive inks are used to slowly construct up a conductive framework. Nevertheless, these inks are restricted of their conductivity, which makes them unsuitable for a lot of functions. They’re additionally sluggish to print and require help buildings and different handbook interventions to supply.

A key consider overcoming these previous points was within the selection of fabric. The group used Discipline’s metallic, which is a combination of indium, bismuth and tin. This mix of metals causes the melting level of the composite materials to be lowered to about 143 levels Fahrenheit, making it far simpler (and safer) to work with than different metals. Discipline’s metallic additionally solidifies quickly, which makes it attainable to create complicated free-standing designs with out help buildings. And in contrast to the inks utilized in direct ink writing, this metallic is extremely conductive.

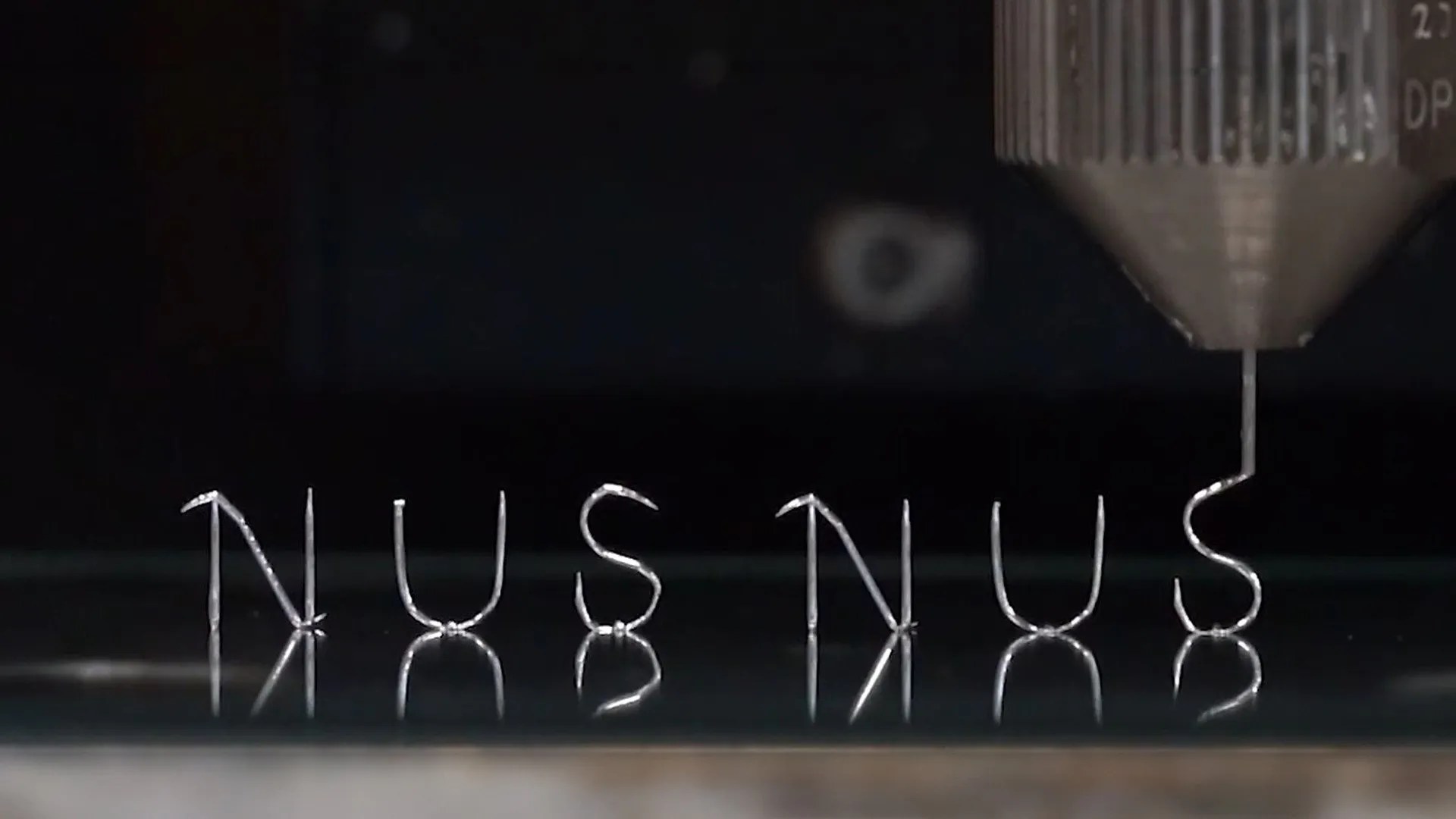

The opposite key to the success of CHARM3D is the best way that the printer exploits the stress between the molten metallic nonetheless within the nozzle, and the just lately printed portion of the construction. This makes it attainable to print uniform microwires as small because the thickness of a human hair. These wires might be printed at a charge of as much as 100 millimeters per second to create cubic frameworks, scalable helices, and different complicated, free-standing buildings.

Utilizing the CHARM3D approach, the researchers demonstrated that they might print the circuit for a wearable, battery-free temperature sensor and an antenna for wi-fi important signal monitoring. Whereas they targeted on healthcare-related functions, the group believes CHARM3D might be helpful in lots of different eventualities, like in sign sensing and processing, sooner or later. At current, they’re investigating different kinds of metals which may improve the expertise, and in addition extra functions areas which will profit from it.
