Manawyrm Digs Deep Into Raspberry Pi Energy Optimization to Slash the Boot Time to Simply 3.5 Seconds

Pseudonymous maker “Manawyrm” has been engaged on getting essentially the most out of a solar-powered Raspberry Pi Zero 2 W — by optimizing its boot time down to simply 3.5 seconds, minimizing wasted energy throughout startup.

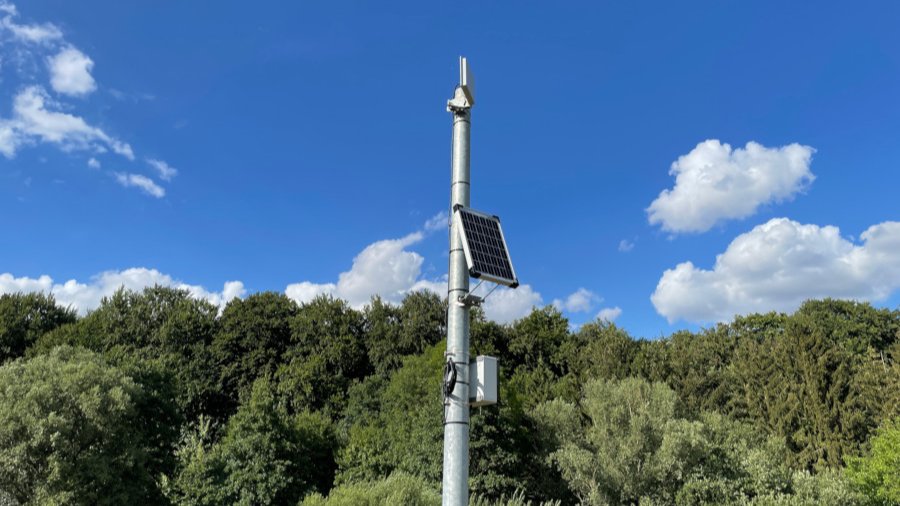

“Some time in the past, the SolarCamPi challenge, a off-grid solar-powered Wi-Fi digital camera, was constructed,” Manawyrm explains. “On this challenge, a Raspberry Pi Zero 2 W is being booted into Linux, an image is taken, Wi-Fi connectivity is established and the Pi is shut down once more (to avoid wasting energy). This repeats each couple of minutes to at all times ship a recent picture to a cloud service. Every second the Pi Zero is powered up makes use of invaluable electrical energy, which is a scarce useful resource in a solar-powered gadget (a minimum of in West European winters…)”

The SolarCamPi challenge was already closely optimized in quite a lot of methods, from tweaking the software program to make sure the method of importing the image to the take away server required as little time as attainable to shutting the Raspberry Pi Zero 2 W single-board pc down when photos aren’t being captured — leaving just one actual space for additional enchancment: the time spent waking the Raspberry Pi up from its slumber to seize the image.

Utilizing a Nordic Semiconductor Energy Profile Equipment II and a USB-SD-Mux — – “it is an interposer between a microSD Card and a DUT [Device Under Test] with a USB-C interface [so] a pc can ‘steal’ the microSD Card from the DUT, rewrite its contents after which plug the microSD card again into the DUT, with out ever having to the touch the gadget” — Manawyrm set about attempting out a varied issues to hurry the from-cold energy draw and general boot time of a Debian 12 “Bookworm” picture.

At inventory settings, the system took round 12 seconds as well — drawing a complete of 1.9 Amp-seconds (As) of power. Disabling the Raspberry Pi’s HDMI output, exercise and digital camera LEDs, lowered this to 1.62As — and disabling the “force_turbo” setting within the boot config lowered that also additional to 1.58As. Additional positive factors had been discovered by disabling EDID probing, given the HDMI output was already disabled, disabling probing for the EEPROM on {Hardware} Connected on High (HAT) equipment, LCD shows, and cameras apart from the one particular digital camera used within the construct, dropping the boot time to 4.75s.

“At this level, loading the kernel is likely one of the slowest operations,” Manawyrm discovered. “This load is being carried out by the GPU (!) with the interior, proprietary [Broadcom] VideoCore-IV processor. It’s attainable that the loader code is simply inefficient and sluggish, it’s additionally attainable that it’s utilizing very conservative settings.” Overclocking the GPU improved the load instances by 20 per cent, after which Manawrym set about utilizing Buildroot to create a customized kernel with as many options disabled as attainable — and storing it disabled, buying and selling an extended load time for an power saving now it not must be decompressed.

With all of these modifications, the Raspberry Pi Zero 2 W booted to user-code in simply 3.5 seconds, drawing 0.364As within the course of — whereas dropping the facility enter down to three.6V, from the inventory 5V, lowered the power draw nonetheless additional, taking the challenge from 1.82 Watt-seconds (Ws) at 5V to 1.438Ws at 3.6V. “We simply decreased the power consumption by one other 20%, simply by working the switch-mode-regulators at a extra splendid working level,” Manawyrm explains. “This requires additional testing for stability/reliability after all (because it’s technically out-of-spec), however this can be a very spectacular end result.”

The complete challenge write-up, together with a work-in-progress Buildroot tree and a Raspberry Pi configuration file, is out there on KittenLabs.
