Often when somebody says “they do not make them like they used to,” they’re lamenting the fashionable proliferation of low cost, mass-produced merchandise that aren’t constructed to final. However typically it’s really good that issues should not made like they was once. Take into account private computer systems, for instance. Whereas many members of the Hackster neighborhood — myself included — like to play with retro computer systems, I believe we are able to all agree it’s good {that a} top-of-the-line private laptop of right now is orders of magnitude extra highly effective than, say, a Commodore 64.

However that doesn’t imply that we can’t spend a while with these machines for each enjoyable and training in our spare moments. Those who wish to return to the very starting of the private computing revolution would want to start out with the Kenbak-1, which was first bought as a equipment in 1971. Private computing was not precisely on the forefront of most individuals’s minds at the moment, nevertheless. Solely about 40 of those computer systems bought, so they’re exceedingly uncommon right now and it might be almost inconceivable to get your palms on one.

However YouTuber Artem Kalinchuk has introduced this platform again to life by creating a contemporary replica that anybody can construct at residence for a small fraction of the unique promoting value. The Kenbak-1 will appear very overseas to a contemporary laptop person in virtually each manner possible. Its programming interface and output machine consisted of switches and lights on the entrance panel of its case. Additionally very unusual by right now’s requirements, the Kenbak-1 had no microprocessor. The entire logic was applied by quite a lot of TTL chips.

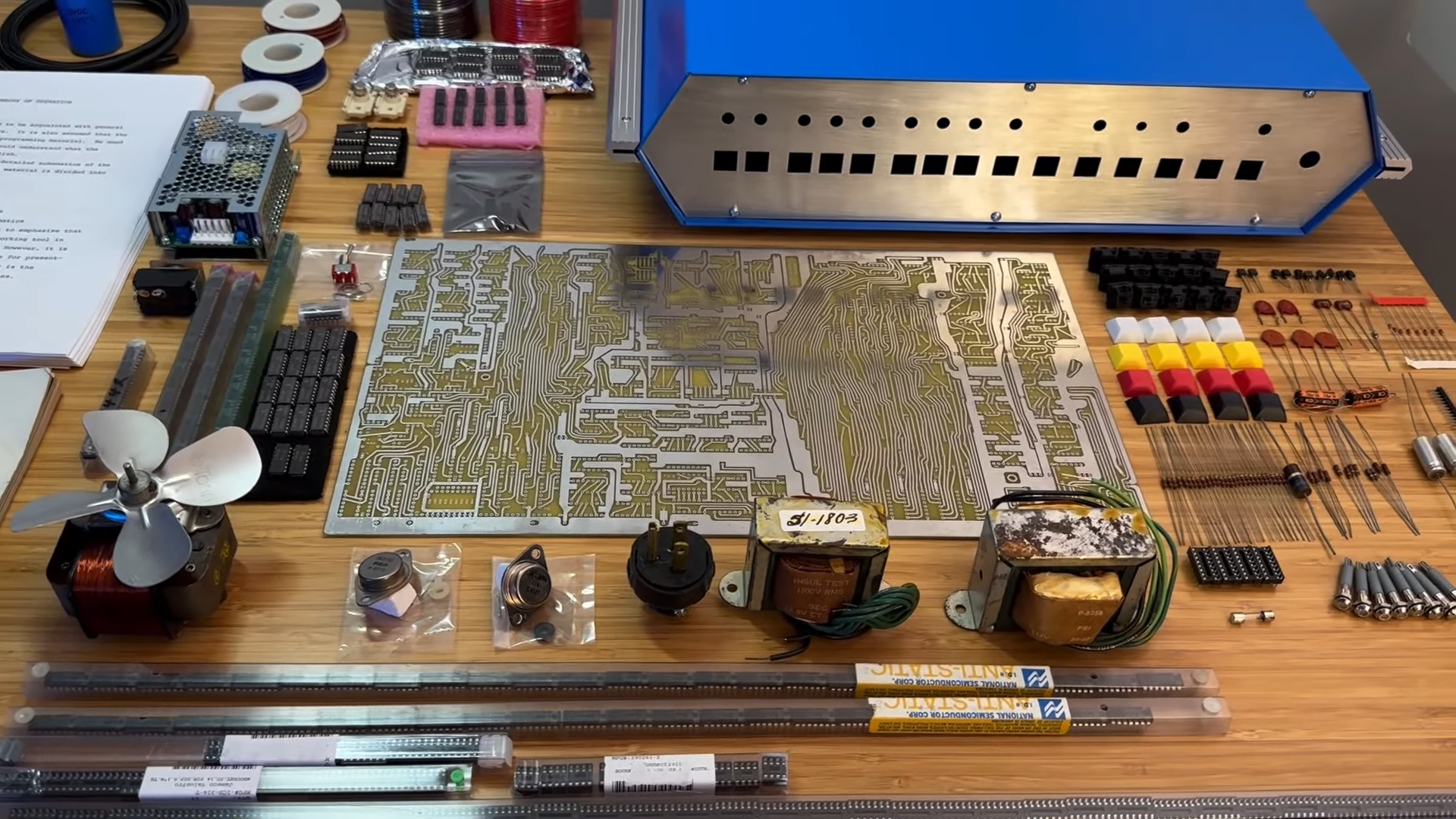

With the intention to reproduce this basic machine, Kalinchuk first tracked down a PCB design that mimics the unique board — huge, large, wavy traces and all — and had one manufactured. Apart from that, 131 7400-series ICs have been required, most of that are nonetheless available right now. A handful of chips, just like the shift registers that make up the Kenbak-1’s odd 256 byte serial reminiscence financial institution have been sourced on secondary markets. The remaining digital parts consisted of a handful of resistors, capacitors, fuses, and so forth.

As for the casing, authentic specification paperwork with measurements have been obtained and utilized to create reproductions in CAD software program. The design recordsdata have been then despatched off to PCBWay to fabricate the elements in powder-coated metal and brushed aluminum. The switches and lights of the entrance panel have been changed with fashionable parts because the originals are nearly unobtainable. The outcome appeared stunning, though it was famous that it was very costly and efforts would should be made to deliver prices down.

As of this writing, Kalinchuk had every part lined as much as begin assembling the pc and testing it. Make sure you keep tuned so that you may be one of many first to see this basic laptop being fired up. If you wish to get began making your personal Kenbak-1, yow will discover the PCB design recordsdata right here, and the CAD recordsdata for the case right here.
