There’s something mesmerizing and galvanizing about watching somebody with an unbelievable degree of ability at absolutely anything. Think about people who study to choose up a jumbled Rubik’s dice, flip it round for a pair seconds, then set it down fully solved earlier than onlookers also have a probability to understand what is going on. Lining up the colours on a plastic dice is probably not probably the most invaluable ability in the true world. Nonetheless, we stare in awe and amazement of the seemingly unimaginable expertise possessed by these people.

These of us that don’t have any hope of ever attaining these ranges of ability, however do have a background in engineering, generally prefer to construct robots to do the job for us. YouTuber Mark Rober was impressed with the way in which that some individuals can remedy jigsaw puzzles with superhuman velocity. So he got down to construct a robotic that would not solely replicate this capability, however do it a lot, a lot sooner. Probably even tons of of instances sooner.

Relying in your degree of expertise with robotics, this may increasingly or might not sound particularly difficult. However, as is all the time the case in engineering, once you dive into the main points issues pop up all over the place. In truth, so many points got here up alongside the way in which that it took Rober three years to construct his puzzle-solving robotic, which was aptly named Jigsaw.

As a primary step, the essential capabilities of the robotic have been outlined. Jigsaw would wish to have the ability to choose up puzzle items, rotate them, transfer them to a place on a two-dimensional floor, and determine the place each bit wanted to go.

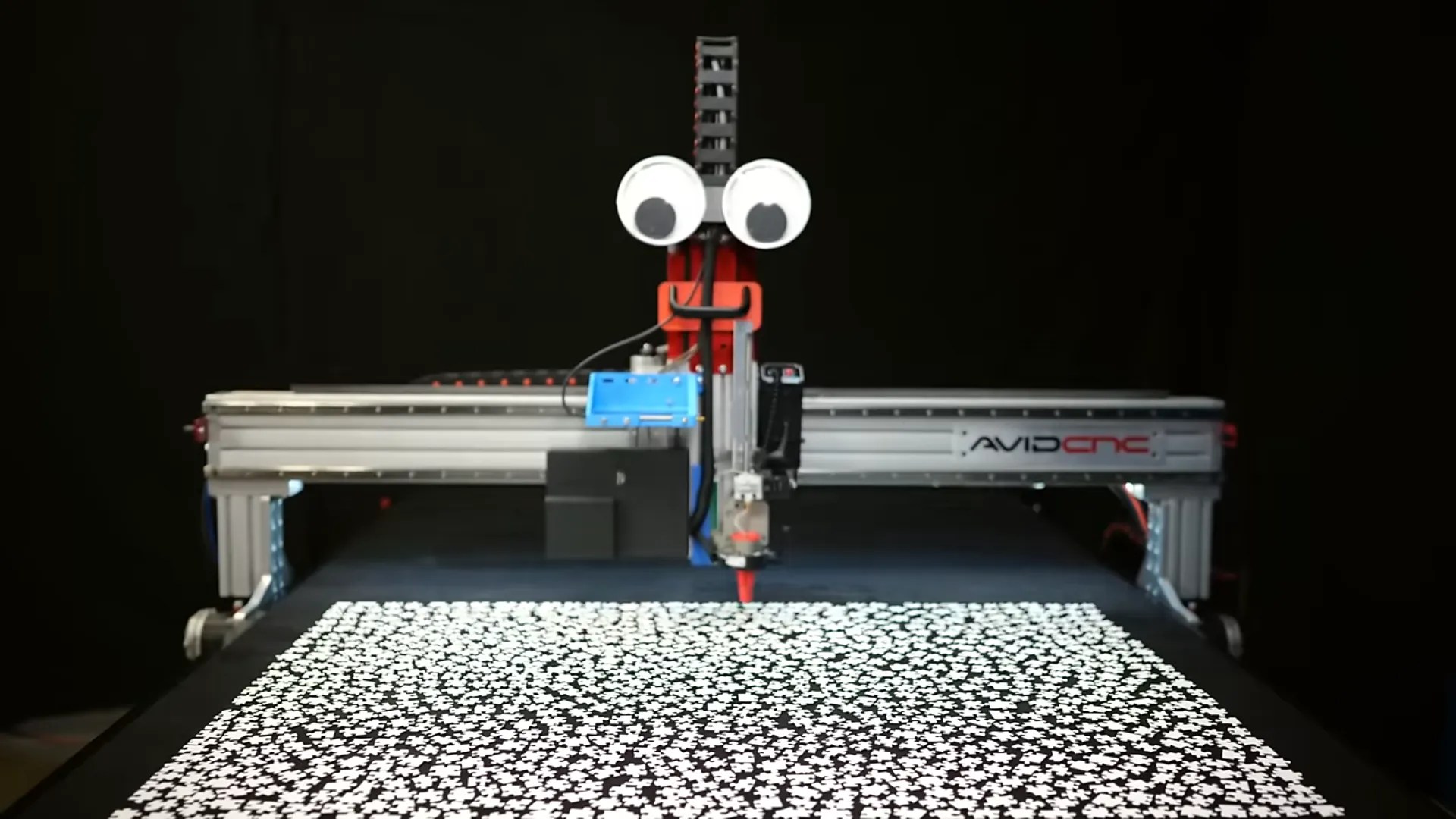

The primary three of those capabilities have been the best to take care of. The robotic was given a suction cup gripper, powered by a vacuum pump managed by a solenoid, to choose up and launch puzzle items. The gripper was hooked up to a really exact motor that would spin it round to rotate items into place. And this complete meeting was fitted onto an Avid CNC machine to maneuver items from one place to a different. This setup enabled items to be positioned with a precision of one-tenth the width of a human hair.

Realizing the place to position a chunk was way more difficult. Rober settled on an algorithm that ignored the picture on the face of the puzzle, and as an alternative seemed solely on the edges of the items. After scanning the sides of all out there items by following a serpentine sample, one of many 4 edges of every piece was in contrast with each different piece to seek out the perfect complementary edge sample. Subsequent, matches for the opposite three sides have been looked for.

Sometimes, a suboptimal match is discovered, which prevents the puzzle from being solved. In these circumstances, the algorithm backs up and tries one other path till it might fully remedy the puzzle. For a 1,000 piece puzzle, this algorithm might run in underneath a minute on a laptop computer pc.

When examined, there have been nonetheless some points that cropped up. For instance, there may be some tolerance between the items of a puzzle that may trigger errors to build up over time. Additionally, the complete puzzle might barely shift in place after a chunk is clicked in. To beat these points, Rober added in a z-axis encoder to sense when one thing was off. In these circumstances, a “wiggling” algorithm was triggered to maneuver the items round barely earlier than clicking them in, very similar to what a human would do.

With the kinks all labored out, Jigsaw went head-to-head with the world’s quickest jigsaw puzzle solver. The robotic was capable of remedy the puzzle in simply 4 hours, whereas the human solver was on observe to complete in a couple of month and a half, assuming twelve hour work days. This may increasingly not have been solely honest because the puzzle items have been fully white, taking away key indicators that individuals would usually use to place them. However given Jigsaw’s velocity, it doubtless would have nonetheless gained underneath any cheap circumstances.

The undertaking video will not be one to be missed, so you should definitely give it a watch!
