Extra Than Only a Figma of Your Creativeness

Most person interface and person expertise designers spend the majority of their time growing digital environments for customers to work together with web sites or smartphone apps. However there are various functions during which digital and bodily environments overlap, which provides lots of extra issues. Take into account a merchandising kiosk, for instance. These machines have a digital interface that enables prospects to flick through the merchandise and make a cost, however when that transaction is full, a robotics system has to spring into motion to ship the chosen merchandise.

In circumstances resembling this, there are sometimes separate groups that work on the {hardware} and software program aspect, they usually should work out find out how to make their programs play good with each other. This division may cause lots of delays and pointless revisions that could possibly be prevented if each the digital and bodily interfaces had been designed by the identical group.

Dave Vondle is {an electrical} engineer that spends lots of time designing person interfaces in Figma, which is an software meant to allow collaboration in creating interface designs. In a current kiosk undertaking, Vondle wanted to construct an interface that had each digital and bodily elements. Sadly, Figma doesn’t assist communication with different software program or {hardware} platforms, making this integration difficult.

So as to get round this downside, Vondle developed a device known as Figproxy. This software program is designed to bridge the hole between Figma interfaces and {hardware}. It really works with any system that’s able to communication over a serial connection, like Arduino improvement boards. The communications by Figproxy are bidirectional, so Figma can ship information to bodily {hardware}, and the {hardware} can even ship information again to the interface.

As beforehand famous, Figma doesn’t assist some of these interactions. So to make it work, Vondle made use of an “on click on” motion obtainable within the software program. Particularly, by supplying a hyperlink that begins with the phrase “ship” relatively than “http,” the Figproxy software program can intercept the message and acknowledge that it’s meant for the {hardware}. Any information following that key phrase shall be transmitted to the {hardware} by way of a serial message. Equally, any serial information transmitted by the {hardware} shall be intercepted and transformed to a keypress occasion by Figproxy, permitting the {hardware} to work together with the digital interface.

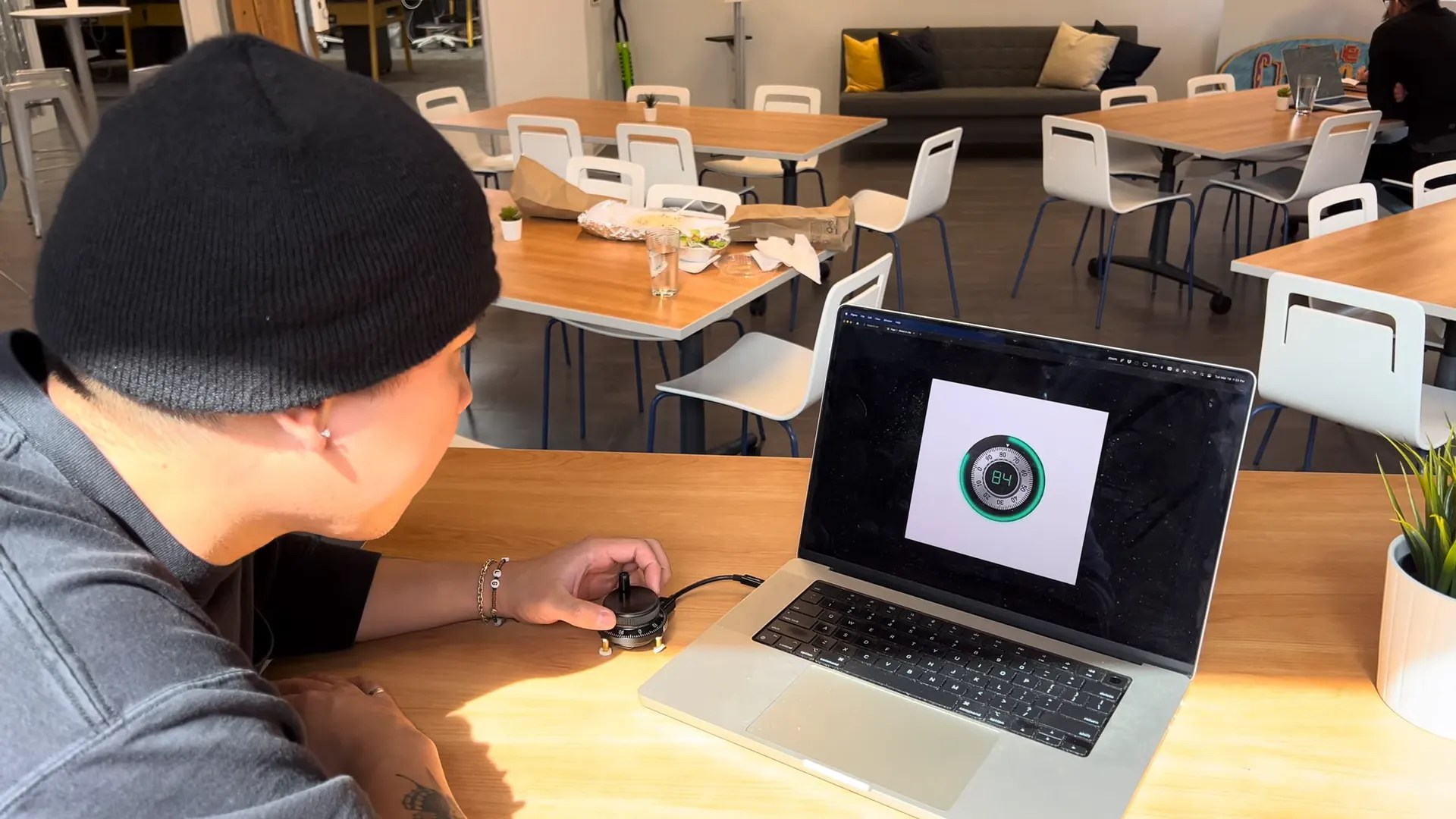

To present us an concept of what could be carried out with Figproxy, Vondle arrange a number of demonstrations. In a single, a bodily knob was spun forwards and backwards, and an on-screen digital twin mirrored the actions. In one other instance, the colour of an LED strip was modified by making changes to a digital interface.

Figproxy positively goes into the “hacky hack” class, and is probably not the form of system that everybody would really feel snug utilizing in a manufacturing system. Nonetheless, it’s a incredible concept and appears prefer it may reduce improvement time down considerably. Simply don’t be too shocked if a future replace to Figma causes Figproxy to cease working.
