Bringing Huge AI to Tiny Units

The newest and best synthetic intelligence (AI) functions are likely to hog lots of assets, from massive computing clusters to huge quantities of power consumption. For that reason, the algorithms typically run in massive knowledge facilities accessible through the general public web. This structure works effectively sufficient for a lot of functions, however for others the place real-time responses are required, the latency it introduces is unacceptable. Moreover, we regularly want to supply AI-based instruments with extremely delicate data like mental property. Sending any such data over the web to an unknown distant knowledge middle is a really questionable observe by way of privateness and safety.

Fortuitously, advances in each {hardware} and software program algorithms have enabled the emergence of tinyML. Utilizing tinyML strategies, many superior AI algorithms can run on severely resource-constrained {hardware} platforms, generally with just some tens of kilobytes of reminiscence. Even historically resource-intensive pc imaginative and prescient functions have made their means onto low-power platforms lately.

These pc imaginative and prescient functions most often are used for duties like picture classification or object detection. However what all of them have in frequent is that they analyze a single picture body at a time. This disregards essential temporal patterns that may solely be noticed by taking a look at a number of frames. Think about making an attempt to acknowledge a dynamic hand gesture from a single body, for instance.

For the primary time, researchers on the Polytechnic College of Milan in Italy have developed a framework for performing analyses on video streams utilizing highly-constrained {hardware} platforms. Referred to as StreamTinyNet , the workforce’s method can analyze a number of video frames to supply a lot better ranges of accuracy than single frame-based TinyML algorithms. But because of the system’s distinctive design, it doesn’t require considerably extra reminiscence or processing energy than these much less succesful options.

On the core of StreamTinyNet is a convolutional neural community that first processes every body of the video individually to extract necessary options. This basically creates a abstract of every body that captures solely important particulars to scale back its dimension. As soon as the options from all frames are extracted, the community analyzes them collectively to grasp the sequence and timing of occasions. This makes use of a operate that appears on the adjustments between frames to establish patterns over time, like a hand shifting to kind a gesture. The processed knowledge is then handed by means of a completely linked neural community, which in the end classifies the enter into one among a number of attainable classes.

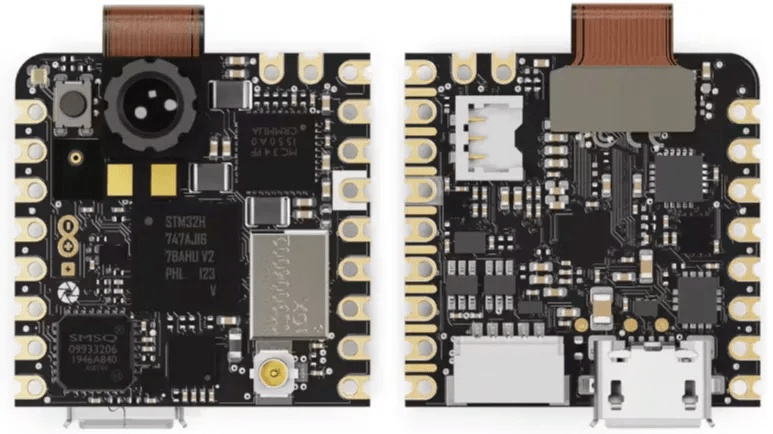

To validate their method in a real-world experiment, the researchers ported StreamTinyNet to an Arduino Nicla Imaginative and prescient growth board. It has a modest quantity of computational assets, with a STM32H747AII6 twin Arm Cortex M7/M4 microcontroller, two megabytes of flash reminiscence, and one megabyte of RAM. Working on this platform, the algorithm was able to performing gesture detection at a really spectacular 15 frames per second. This solely required about 300 kilobytes of RAM.

Trying forward, the workforce intends to proceed enhancing StreamTinyNet. Subsequent up, they plan to deal with points with sensor drift and in addition discover adaptive body charges to optimize power consumption.Arduino Nicla Imaginative and prescient (📷: Arduino)

The proposed StreamTinyNet pipeline (📷: H. Shalby et al.)
