A easy, full coloration improve to your LED indicators

Just lately, I used to be engaged on a undertaking that wanted a few LEDs on its entrance panel for standing indication. I understand many, if not most, items of digital tools now use graphic LCDs, Bluetooth to telephones or tablets, or connections to PCs for informational show. However some issues are means too easy for that, like on/off indicators when a temperature reaches its setting or when there’s a brief detected. The undertaking I used to be engaged on didn’t want a graphic LCD or different main show however wanted just a little greater than a one-color LED. I wanted a number of colours—two wasn’t sufficient, not even three—4 would work. I might use a three-color four-pin LED and blend colours, however I used to be not enamored with the mixes. What I needed was a easy answer that will give me a number of coloration decisions together with brightness management.

Wow the engineering world along with your distinctive design: Design Concepts Submission Information

I used a type of multicolor LED strips earlier than, on a parking help undertaking and it labored properly and was simple to get working. Additionally, it solely wanted one digital I/O line (apart from the facility and floor) which is vital in the event you’re working low on I/O pins. However for this new undertaking, I didn’t want a strip of 100 LEDs, I simply wanted two LEDs. Additionally, I used to be in search of a small answer like a 5MM T-1 3/4 LED. So, what if I took one of many LEDs from the lengthy strip and 3D printed a holder within the form of a 5mm LED?

First let’s take a fast have a look at the LED strip I’m speaking about. Simply seek for a “WS2813B LED Strip”. You’ll see that this has 3 pins: +5v, floor, and one knowledge line. You’ll discover firmware drivers for plenty of processors, however I selected a library known as FastLed created for Arduino boards as that was used on the undertaking. Sometimes, you’d use FastLed to speak to every of the LEDS on a strip by the only knowledge line as the info is forwarded to the subsequent LED in line so the info propagates to the final LED. In FastLed, the info is properly abstracted so, together with many different capabilities, you’ll be able to set every particular person LED within the strip with distinctive crimson, inexperienced, and blue (RGB) values. R, G, and B are every given a worth from 0 to 255. This enables for an unlimited variety of colours and brightness’s that can be utilized (basically all colours of the rainbow). In the event you want utilizing hue, saturation, and worth (HSV) in lieu of RGB values, there’s a operate name for that as properly. These LED strips additionally help you minimize them to any size. When one is minimize out, it’s a single LED with solderable patterns on each out and in of the LED, see Determine 1.

Determine 1 Single LEDs minimize from a WS2813B LED strip, the wires could be soldered to the only LED, connecting the info line from the Arduino.

Let’s have a look at use these. Wires could be soldered to the only LED ensuring to attach the info line coming from the Arduino to the aspect with the arrow pointing to the LED chip, let’s name this the left aspect. If you wish to check this out rapidly, join the facility and floor to an Arduino Nano’s +5v and GND. Then, join the LED’s knowledge line (center hint) to D7 on the Nano. Subsequent, load this system in Itemizing 1 into the Nano and run it. You need to see the colour altering after which repeating. (Be aware, you might have to load FastLed.h utilizing the Arduino Library Supervisor.) See “Program Itemizing 1” beneath:


1  #embrace <FastLED.h>
2
3  #outline LED_PIN 7
4  #outline NUM_LEDS 1
5
6  CRGB leds[NUM_LEDS];
7  uint8_t h = 0;
8
9  // ====================== SETUP =====================
10 void setup() {
11  FastLED.addLeds<WS2812, LED_PIN, GRB>(leds, NUM_LEDS);
12 }
13
14 // ====================== LOOP =====================
15 void loop() {
16
17  for (h = 0; h < 256; h++) {
18      leds[0] = CHSV ( h, 255, 255); // Set values within the LED
19      FastLED.present();
20      delay(40);
21  }
22 }

Clearly, this isn’t a panel mount LED but, so let’s have a look at the adapter that holds the only LED. Offered within the obtain location are 3D recordsdata for printing the adapter components. For the 5-smm LED adapter, print the principle a part of the adapter and the again cowl.

First place the minimize LED within the slot on the backside of the adapter (LED chip dealing with the domed head). That is then held in place by the again cowl that slides over the LED (see Determine 2). There isn’t a want for adhesive; actually, don’t peel off the plastic exposing the sticky again on the LED.

Determine 2 Elements and mounting of the LED into the adapter (a hyperlink to the 3D design recordsdata for these components could be discovered on the finish of this text).

The adapter’s important physique is printed with a clear filament (or resin in the event you’re utilizing that kind of printer). I used a clear PLA and a layer top of 0.12 mm. I examined completely different percentages for infill and located 15% gave me good gentle transmission. The sliding again cowl could be printed in any coloration; I used gray PLA and a 0.12 mm layer top.

The highest of this adapter is actually a 5 mm LED form and dimensions so it may be used with business panel mount LED holders. In the event you’d moderately, the LED suits properly, and snuggly, right into a 5 mm gap when utilizing a 3D printed entrance panel with a 5 mm printed gap—I’ll present an instance later.

I additionally designed an adapter with a sq. lens, made for panel mounting in a 16×16 mm gap in a 3D printed panel. It’s assembled in a similar way (Determine 3).

Determine 3 Elements and mounting of the LED into the sq. adapter (a hyperlink to the 3D design recordsdata for these components could be discovered on the finish of this text).

Be aware that after some testing, the infill of 15% once more gave one of the best gentle transmission whereas spreading the sunshine throughout the total floor. However that is subjective and you might need to attempt completely different infill percentages and a distinct variety of backside layers (the face of the adapter is the underside of the print).

To check these adapters, I design a check stand that holds one sq. adapter and two 5 mm adapters. It additionally permits for the mounting of three potentiometers to regulate colours and brightness. First let’s have a look at the schematic (Determine 4).

Determine 4 Schematic of the string lights-to-LED adapter the place the 5v is provided by a USB connection to the Arduino Nano and the potentiometers are related to the three analog inputs to digitally learn their positions.

As you’ll be able to see, it’s fairly easy. There isn’t a energy provide as 5v is provided by a USB connection to the Arduino Nano. The potentiometers are related to a few analog inputs so we are able to digitally learn their positions. The LEDs share energy and floor. Additionally, the D7 pin of the Nano is routed to the primary LED, the sq. one. This must be a connection to the labeled D1 hint, with the arrow, (left aspect) on the LED strip. Then join the correct aspect D1 hint the subsequent LEDs D1 with the arrow, (left aspect). End by connecting the correct aspect D1 to the final LEDs left aspect D1. See this association in Determine 5.

Determine 5 The LED wiring for the check stand the place the D7 pin of the Nano is routed to the primary LED.

This ordering of the LEDs is used within the c code because the LED wired on to the Nano’s D7 pin shall be addressed with index “0”. The LED related subsequent shall be addressed as index “1”, and the final LED as index “2”.

Now, after 3D printing the check stand’s two components, it may be assembled utilizing 2 screws as per the schematic and as seen in Determine 6. The sq. lens could be inserted into the check stand then the subsequent 5-mm LED into the higher gap within the check stand. The final LED could be inserted into the decrease gap after putting in a bezel. This bezel could be printed from the obtain recordsdata, or it may be a business bezel.

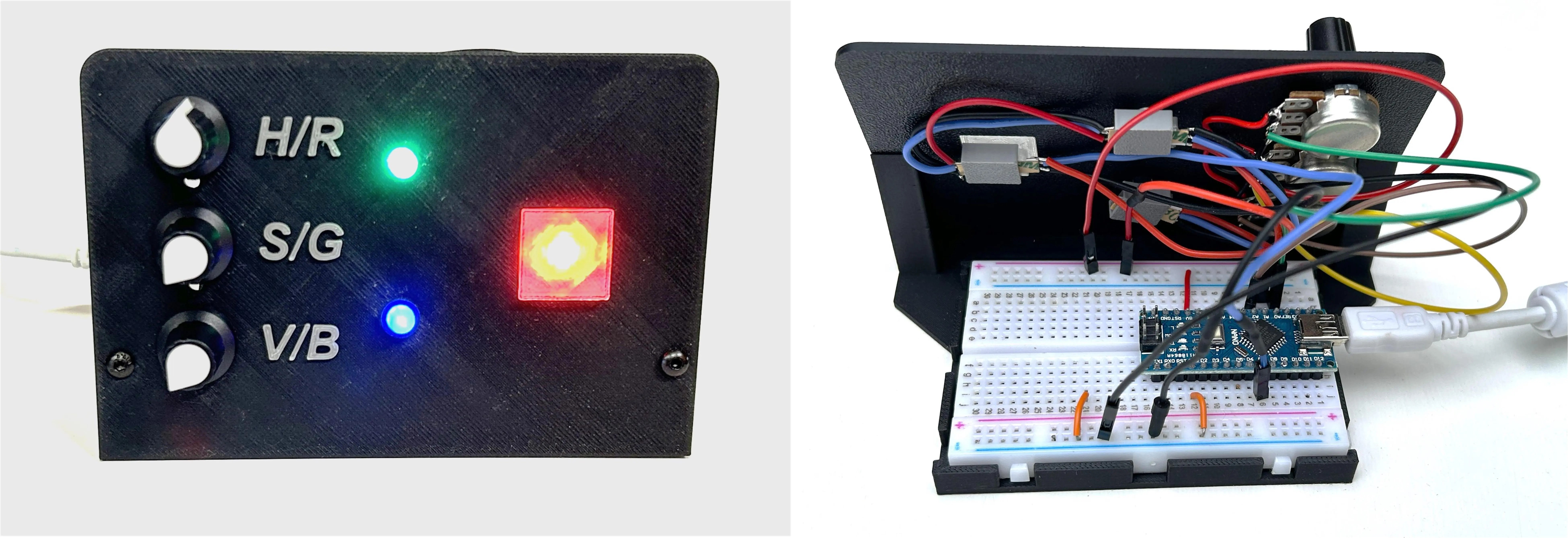

Determine 6 The 3D printed check stand to check the effectiveness and esthetics of the adapters. The RGB settings or HSV settings could be adjusted with the management knobs utilizing particular packages.

Utilizing varied demonstration packages provided within the obtain, you’ll be able to check the effectiveness and esthetics of the adapters. There’s a program to permit adjustment of colours and brightness, utilizing the management knobs to regulate RGB settings. With one other program, you’ll be able to regulate HSV settings. As you regulate the knobs, the digital values are displayed on the Arduino serial output so you will discover a coloration and brightness you need to use and document its values.

I feel you’ll discover that these adapters will come in useful for a lot of of your tasks requiring LEDs. You cannot solely get an enormous collection of colours however you’ll be able to management/regulate all of your LEDs from one management pin. Additionally, you’ll be able to have an adjustable brightness with out utilizing PWM. As for value, while you purchase an LED strip, you’ll discover the person LEDs work out to be solely about 10 cents every.

All recordsdata for printing the components (stl, step, 3mf) are supplied within the obtain location, as are additional photos, the BOM, and extra info. The obtain could be discovered at:
