A 3D Print That’s Extra Than Meets the Eye

Kids of the Eighties will endlessly bear in mind the Transformers toys. Lengthy earlier than turning into one of many highest-grossing media franchises of all time, the Transformers spawned most of the coolest toys ever to be produced, in addition to a generally fairly tacky, but undoubtedly superior, cartoon. Sure Transformers toys had been extra wanted than others, like Optimus Prime who may remodel between a humanoid robotic and a semi truck, and Extremely Magnus the automobile provider.

However as youngsters, many of those Transformers had been out of attain. With excessive value tags and restricted alternatives to persuade their mother and father to purchase them one, these children had been typically left drooling over their favorites within the retailer with out ever with the ability to have their very own. However now these youngsters are grown and have extra sources at their disposal. The gratification could also be long-delayed, however possession of these as soon as out-of-reach toys is lastly at hand!

However then a fast search exhibits that many of those toys are nonetheless past attain! Fifteen thousand {dollars} for Soundwave! Severely? Drat! The mission has been foiled but once more by the evil Decepticon forces, little question. Not so quick, says YouTuber Nectar Mechanics. Why not simply 3D print your individual Soundwave? And possibly even give it some upgrades alongside the way in which? Sure, please!

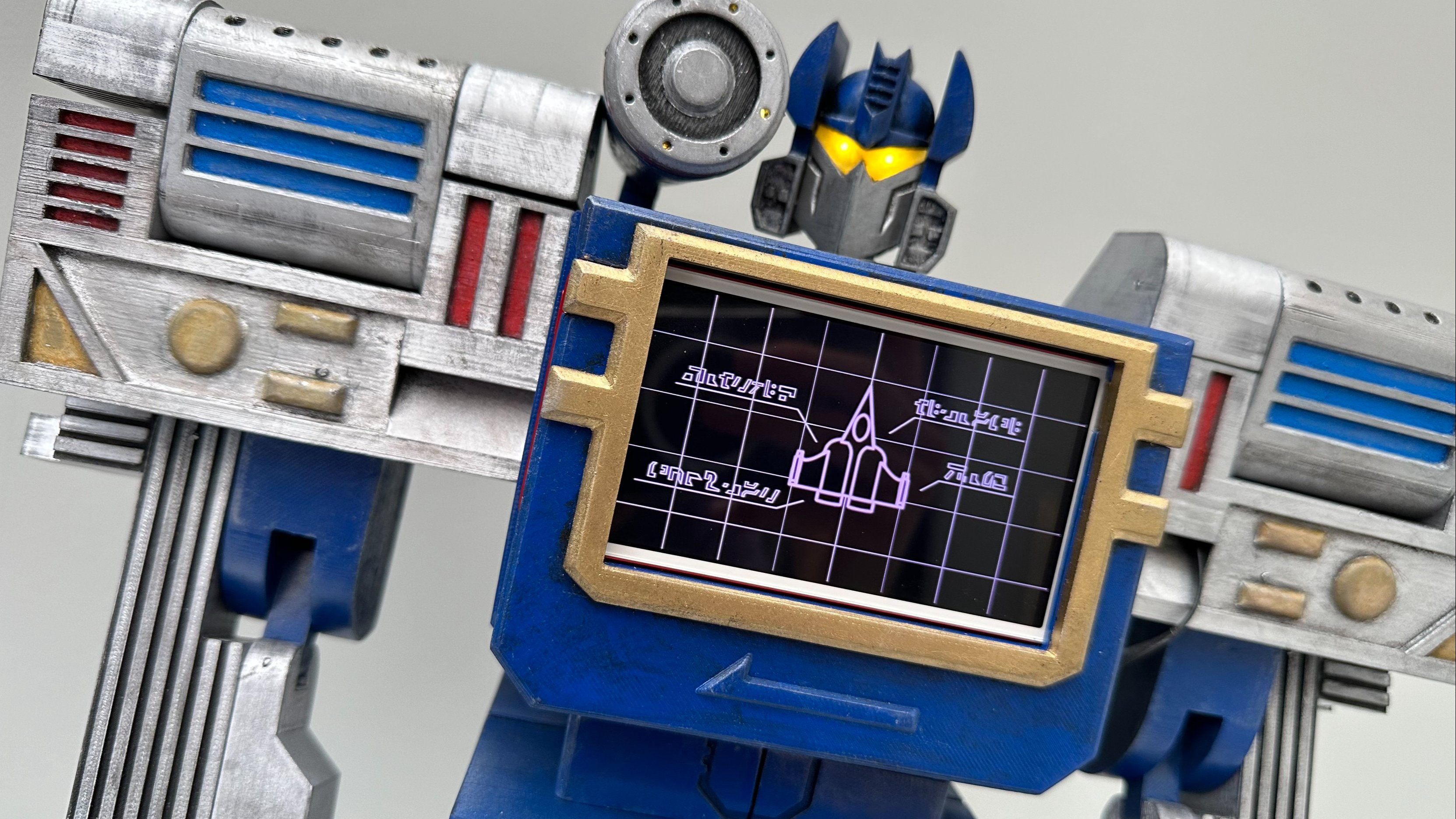

To maximise awesomeness, Nectar Mechanics determined to incorporate some electronics within the construct. At the start, the cassette tape participant could be extra than simply ornament — it will want to truly play a tape. Additionally, the display on Soundwave’s chest would wish to essentially work in order that it may show schematics like within the cartoon. And only for enjoyable, why not add some LEDs to mild up the eyes?

Components had been scavenged from an outdated moveable cassette tape participant and a pair of headphones to help tape playback. An iPod contact provided the show for Soundwave’s chest, which performed host to some animations designed with Blender.

The mannequin design course of was fairly prolonged and complex. Nectar Mechanics walked via the steps, beginning with creating the elements in FreeCAD. This took lots of consideration to element, such that the robotic may remodel right into a boombox-like tape participant with out interfering with the interior electronics or pinching any wires. Even the non-functional buttons got springs and pegs in order that they could possibly be pressed with out disappointment.

When the design was lastly able to go, the subsequent step concerned 4 weeks of printing elements with a Prusa MK4 and doing numerous sanding. The elements had been then spray painted and weathered with washes and dry brushing earlier than the mannequin was assembled and glued collectively.

The completed toy turned out wonderful, however you’ll have to determine for your self whether it is value spending two months of your life making, or when you could be higher off pulling the set off on a purchase order on an public sale website. Or possibly neither, through which case you’ll be able to simply take a look at the video to see Nectar Mechanics’ wonderful construct.
